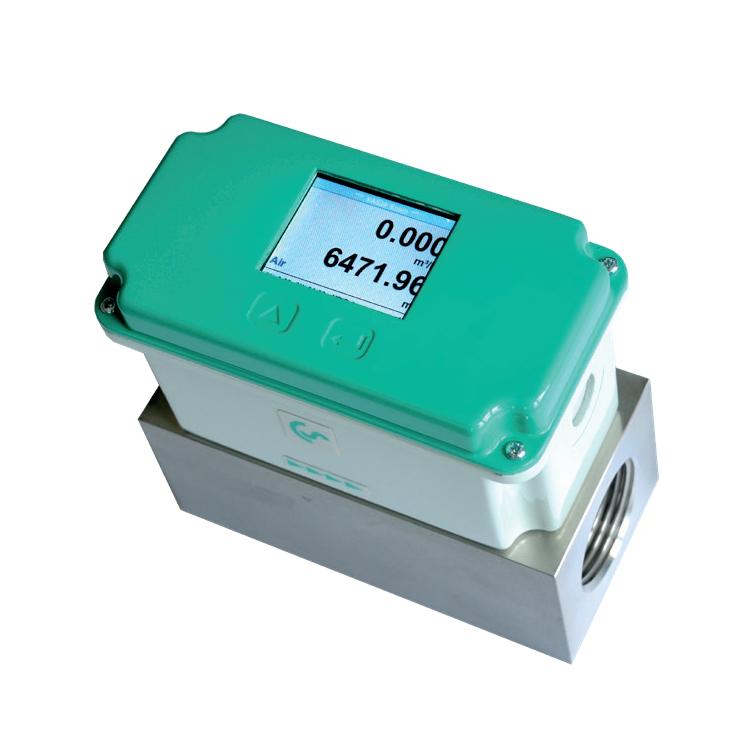

CS Instruments VA 525 用于空气和氮气的紧凑型内联式流量传感器

Parameter: m³/h, l/min (1000 mbar, 20°C) in case of compressed air or Nm³/h, NI/min (1013 mbar, 0°C) in case of gases

Units adjustable via keys at display: m³/h, m³/min, l/min, l/s, ft/min, cfm, m/s,kg/min, g/s, lb/min, lb/h

Sensor: Thermal mass flow sensor

Measured medium: Air, gases

Gas types are adjustable over CS service software or CS data logger: Air, nitrogen, argon, CO2

Measuring range: Low-speed version (50m/s); Standard version(92.7 m/s); Max version (185 m/s); High-speed version (224m/s)

Accuracy: (o.M. V.= of measured value);  (o. F. S. = of full scale): :±1.5% of m.v. ± 0.3% of f.s. on request: ± 1% of m.v. ± 0.3% of f.s. or ± 6% of m.v. ± 0.5% of f.s

Pressure measurement: 0...16bar, accurac: 1%, or 10...2000 mbar (abs)

Operating temperature: -20...60°C

Operating pressure: Up to 16 bar

Digital output: RS 485 interface, (Modbus-RTU), M-Bus ( optional), Ethernet interface or PoE

Analogue output: 4...20 mA for m³/h or l/min

Pulse output: 1 pulse per m³ or per litre electrically isolated. Pulse weight can be set on the display. Alternatively. the pulse output can be used as an alarm relay

Supply: 18...36 VDC, 5W

Burden: < 500  Ω

Housing: Polycarbonate (IP 65)

Measuring section: Aluminium

Connection thread of measuring sections: G 1/4" to G 2" (BSP British Standard Piping) or 1/2" to 2" NPT thread.

Mounting position: any
