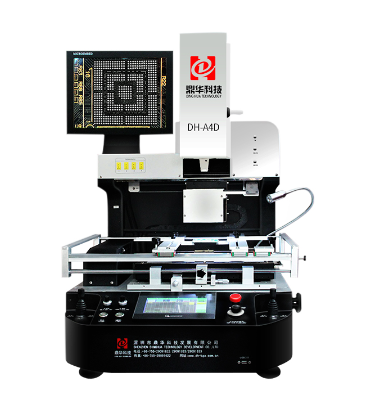

DINGHUA TECHNOLOGY DH-A4D BGA返修台 (6800W, 1x1~90x90mm)
制造商: DINGHUA TECHNOLOGY Model: DH-A4D - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Power supply: 220V +/- 10%, 50/60HZ
Rated power: 6800W
Upper power: 1200W
Lower popwer: the 2nd zone: 1200W, the 3rd zone（IR）:4200W
IR zone: movement left or right 100mm
PCB Positioning: Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groove pcb bracket + universal fixtures.
Temperature control: K sensor, close loop, PID
PCB size: Min 10*10mm, Max:500*420mm
Chip fine-tuning: left/right:+/- 15mm, back and frond:+/- 15mm, 60° rotation
Camera manification: 10x ~100x
Chip size: 1*1~90*90mm
Chip spacing: 0.15mm
Temp ports: 4 pcs
Placement accuracy: +/-0.01mm
Dimension: 700*700*950mm
Net weight: 97kg
