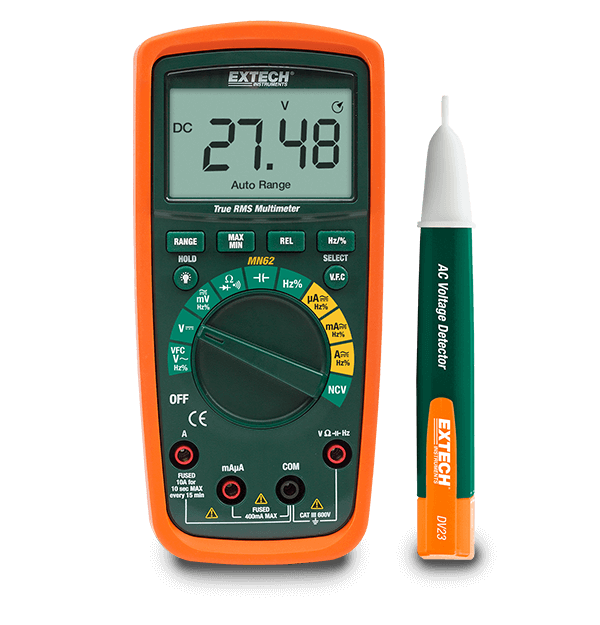

EXTECH MN62-K 带交流电压检测套件的真均方根万用表

MN62 Specifications

Display count: 4000 count backlit LCD

DC/AC Voltage: 40.00mV, 400.0mV, 4.000V, 40.00V, 400.0V, 600V    DC: ±(0.5%+2d), AC: ±(1.0%+3d)

DC/AC Current 40.00mA, 400.0mA, 4.000A, 10.00A     DC: ±(0.7%+2d), AC: ±(1.0%+3d)

DC/AC µA: 400.0µA, 4000µA

Non-Contact Voltage (NCV): 100 to 600V AC (audible beeper)

Resistance: 400.0Ω, 4.000kΩ, 40.00kΩ, 400.0kΩ, 4.000MΩ, 40.00MΩ

Frequency: 9.999Hz to 9.999MHz

Capacitance: 9.999nF, 99.99nF, 999.9µF, 9.999mF, 99.99mF

Continuity/Diode: Yes

Dimensions/ Weight: (175 x 80 x 48.5mm)/ 350g (includes batteries)
