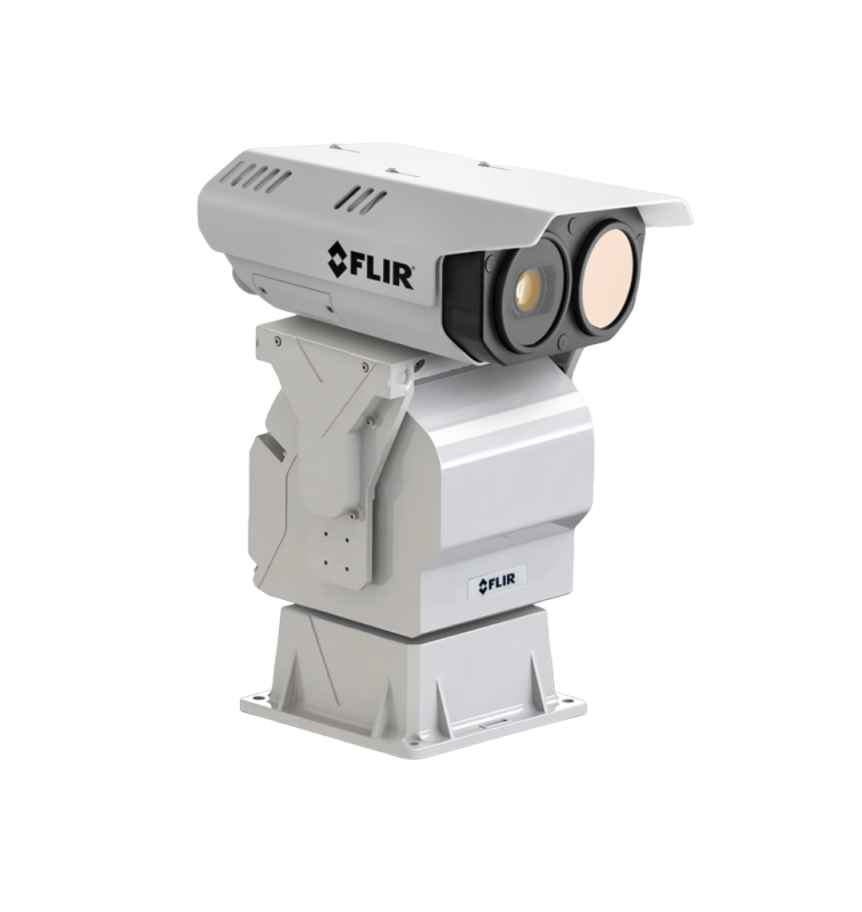

FLIR FH-644 R PTU 多光谱云台变焦相机 (13 MM)

General

Detector Type: Long-life, uncooled Vox microbolometer

Enclosure: FH R PTZ camera: NEMA 4X PTU unit: aluminum alloy

Input Voltage: 24 V AC (±10%) 24 V DC (±10%)* *Ensure power supply is capped correctly to avoid overheating

Power Consumption: FH-Series R PTZ + PTU Unit: ≤150 W

Size [L × W × H]: tba

Surge Immunity on AC Power Lines: EN 50130-4 (FH R PTZ camera only)

Surge Immunity on Signal Lines: EN 50130-4 (FH R PTZ camera only)

Weight: 18.1 kg (41.4 lbs)

Connections & Communications

Control Protocols: Pelco D

Cyber Security

Security: IEEE 802.1X TLS / HTTPS User authentication Access control via firewall User credentials with policy enforcement Digest authentication

Environmental

Humidity: FH R PTZ camera: 0-95% relative humidity PTU unit: <90% relative humidity

IP Rating (dust & water ingress): IP66

Operating Temperature Range: -35°C to 65°C (-31°F to 149°F)

Shock: IEC 60068-2-27 (FH R PTZ camera only)

Storage Temperature: FH R PTZ camera: -55°C to 85°C (-67°F to 185°F) PTU unit: -40°C to 70°C (-40°F to 158°F)

Vandal Resistance: IK10 (except windows; FH R PTZ camera only)

Vibration: IEC 60068-2-64 (FH R PTZ camera only)

Environmental & Certifications

Corrosion: FH R PTZ camera: MIL-STD 810G, 1000 hr salt spray PTU unit: PH 6.5 to 7.2, continuous spraying for 48 hours without surface change

Imaging & Optical

Frame Rate: 30 Hz

Visible Camera Resolution: Full HD 1080p (1920 × 1080)

F_number: f/1.0

Measurement & Analysis

Accuracy: Target below 100°C (212°F): ±5°C (±9°F) Target below 150°C (302°F): ±5% Target above 150°C (302°F): ±15% Measured at 25°C ambient temperature. Inaccuracy can increase at extreme temperatures.

Object Temperature Range:

High Gain Mode: 0°C to 160°C (32°F to 320°F)

Low Gain Mode: 0°C to 380°C (32°F to 716°F)

Other

Optical zoom_Visible: Up to 30x

Surge Protection: FH R PTZ camera: TVS 6000 V lightning protection, surge protection, voltage transient protection PTU Unit power: 2000 V (line to ground 2000 V, line to line 1000 V) Video signal: 1000 V (line to ground 1000 V, line to line 500 V)

PTZ

Pan Angle: 360° continuous

Pan Speed: 0.1°/s to ~55°/s

Presets - Preset Accuracy: Supports 200 valid preset bits; ±0.1° accuracy

Tilt Angle: -75° to ~40°

Tilt Speed: 0.1°/s to ~25°/s

Sensor & Optical

Field of View: 44° × 36°

Storage

Internal Storage: microSD card slot: up to 512 GB on a Class 10 microSD/microSDHC/microSDXC card (minimum 8 GB)

System Integration

Digital I_O: Input: two dry alarm contacts; Output: two relay contacts, 1A max and 24 V AC/30 V DC Normally open or normally closed (configurable)

Ethernet: 100/1000 Mbps

Network APIs: NEXUS SDK, NEXUS CGI, ONVIF PROFILES S, G, and T

Streaming Resolution: Primary and Secondary Streams Thermal: VGA (640 × 512) Visible: 1080p (1920 × 1080), 720p (1280 × 720), VGA (640 × 480)

Supported Protocols: IPv4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X

Thermal Camera

Image Uniformity Optimization: Automatic flat-field correction (FFC) - thermal and temporal triggers

Pixel Pitch: 17 µm

Thermal AGC Region of Interest [ROI]: Default, presets, and user-definable to ensure optimal image quality on subjects of interest

Thermal Image Settings: Auto AGC, Digital Detail Enhancement (DDE), brightness, contrast

Video & Recording

Video Compression: H.264/H.265/MJPEG: four independent streams (2 visible, 2 thermal)

Visible Camera

Array format: 640 × 512

Focal Length: 13 mm

Sensitivity: <35 mK @ 25°C (77°F), f/1.0

Spectral Range: 7.5 µm to 13.5 µm

Video Frame Rate: NTSC: 5-30 fps / PAL: 5-25 fps

Visible f number: f/1.6–f/4.4

Visible Camera

Visible Field of View: HFOV: 2.34° to 59.8° / VFOV: 1.48° to 40.5°

Visible Focal Length: 4.5 mm to 135 mm
