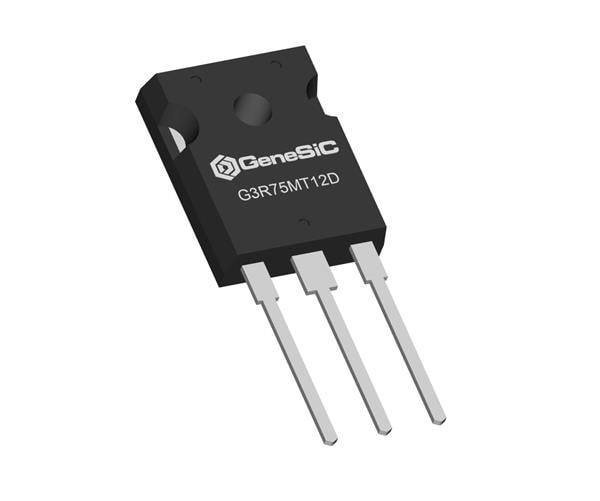

GeneSiC G3R75MT12D SiC MOSFET 1200V 75毫欧 TO-247-3 G3R SiC MOSFET
制造商: GeneSiC Model: G3R75MT12D - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Fall Time: 16 ns
Rise Time: 12 ns
Technology: SiC
Unit Weight: 6 g
Channel Mode: Enhancement
Configuration: Single
Mounting Style: Through Hole
Qg - Gate Charge: 47 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 182 W
Vgs - Gate-Source Voltage: - 5 V, + 15 V
Typical Turn-On Delay Time: 25 ns
Typical Turn-Off Delay Time: 15 ns
Id - Continuous Drain Current: 36 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 9 S
Rds On - Drain-Source Resistance: 75 mOhms
Vds - Drain-Source Breakdown Voltage: 1.2 kV
Vgs th - Gate-Source Threshold Voltage: 2.7 V
