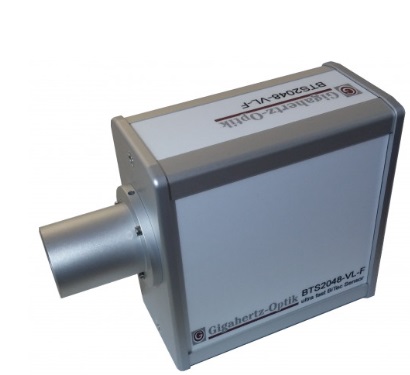

Gigahertz-Optik BTS2048-VL-TEC-F Spectroradiometer (280 -1050 nm)

-Measurement range: Depending on the accessories. Spectral range 280 nm to 1050 nm

-Typical applications: Separate setup of the CCD spectroradiometer and measurement optics. Measurement device with light guide for integration in test systems for front-end and back-end LED binning

-Calibration: Factory calibration. Traceable to international calibration standards

-Measured Quantity:

With light guide and diffusore entrance optics spectral irradiance (W/(m² nm)), illuminance (lx), dominant wavelength, peak wavelength, center wavelength, centroid wavelength, x, y, u´, v´, X,Y,Z, delta uv, color temperature, color rendering index (CRI) Ra, R1-R15. With integrating sphere: in addition spectral flux (W/nm) and luminous flux (lm)

-Sensor:

Accuracy class B according to DIN 5032 and CIE No. 69

Accuracy class A for f1`, u, f3 and f4 according to DIN 5032 and CIE No. 69

-Input optics: Light guide adapter

-Filter wheel: 4 positions (open, closed, OD1, OD2). Use for remote dark current measurement and dynamic range extension.

-BiTec: Parallel measurement with diode and array is possible, thereby linearity correction of the array through the diode and online correction of the spectral mismatch of the diode through a*(sz(λ)) respectively F*(sz(λ)).

-Calibration: Depending on the light guide

-Microprocessor: 32bit for device control,16bit for CCD array control, 8bit for photodiode control

-Interface: USB V2.0, Ethernet (LAN UDP protocol), RS232, RS485

-Data transfer: Standard for 2048 float array values via ethernet 7ms, via USB 2.0 140 ms

-Input Interfaces: 2x (0 - 25) VDC, 1x optocoupler isolated 5 V / 5 mA

-Output Interfaces: 2x open collector, max. 25 V, max. 500 mA

-Trigger: Trigger input incorporated (different options, rising/falling edge, delayed, etc.)

-Software:

User software S-BTS2048

Optional software development kit S-SDK-BTS2048 for user software set-ups based on .dll‘s in C, C++,C# or in LabView.

-Power Supply:

With power supply: DC Input 5V (±10 %) at 700 mA

With USB bus (500mA)

-Dimensions: 103 mm x 107 mm x 52 mm (Length x Width x Height)

-Weight: 500g

-Mounting:

Tripod and M6 screw threads

Front adapter UMPA-1.0-HL for use with integrating sphere port-frame UMPF-1.0-HL

-Temperature range:

Storage: (-10 to 50)°C

Operation: (10 to 30)°C
