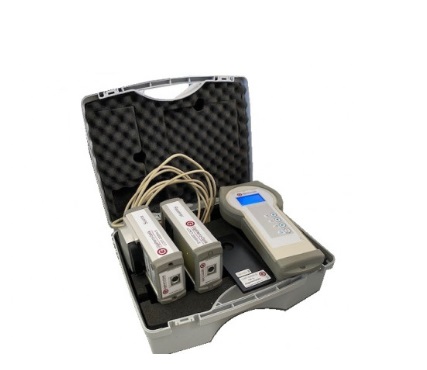

Gigahertz-Optik LCRT-2005H-S Portable Spectrophotometer for Light Transmission (380 nm ~ 780 nm, 5 nm)

-Measurement range:

Spectral range: 380 nm to 780 nm

Spectral resolution: 5 nm

Transmission range: 5 % to 100 %

Measurement beam diameter: 6.6 mm

Illumination: A, C, D65

Detection: Spectral Photometric, Spectral Radiometric

-Typical applications:

Measurement of the light Transmission and Haze of automotive and all other vehicles front and side windows. Measurement of the spectral transmission of thin films and thin plates.

-Calibration:

Relative measurement method with 100% reference adjustment.

Optional calibration with 70% or 80% calibration standards.

-Measurement geometry:

D/0 geometry; measurement of the luminance ratio with a diffuse light source as per CIE 130 & DIN 5036.

Haze measurement according to ASTM D1003−13

-Sensor: Diode array detector with radiance lens. Depolarizer for measurement of polarized samples. Simulation of photometric responsivity. Digital camera for aid in freehand setup of source and receiver.

-Spectral range: 380 nm to 780 nm

-Measurement range: 5 % to 100 % transmission for a color-neutral transmission spectrum

-Typical Measurement uncertainty: ± 1 % absolute

-Data Resolution: 0.1 %

-Temperature range: 10 °C to 40 °C

-Humidity: Above the saturation temperature
