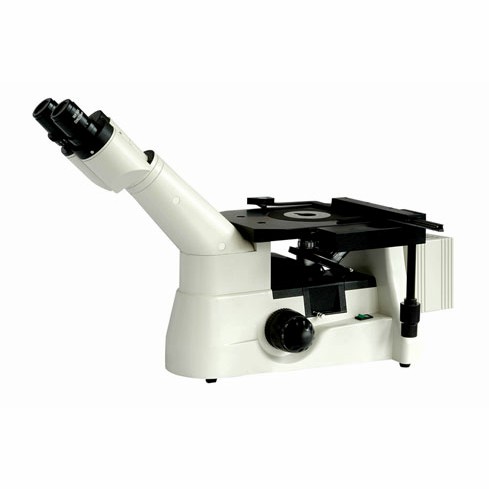

HINOTEK XJP-403J 冶金显微镜 (4X-40X)

Viewing head: Compensation Free Binocular Head. Inclined at 45° ( 50mm -75mm )

Eyepiece: WF10X/20mm; WF10X/20mm with reticule 0.1mm

Nosepiece: Quintuple nosepiece

Objective: 195 metallurgical objectives 4X/0.1W.D.25mm; 10X/ 0.25W.D .11mm; 20X/0.4W.D .9mm; 40X/0.6W.D. 3.8mm

Stage: Double layers mechanical stage; Stage size: 242mm × 172mm; Central stage: Φ110mm; Moving range: 75mm × 50mm

Focusing: Coaxial coarse & fine focusing adjustment  with rack and pinion mechanism Fine focusing scale Value 0.002mm

Illumination: Epi-Kohler illumination. With aperture iris diaphragm and field iris diaphragm. 12V/30W.AC85V-230V Adjustable brightness

Filter: Blue, green, yellow

Polarizing outfit: Analyzer rotatable 360° ,polarizer & Analyzer can be slid in/out of the optical path

Checking tool: 0.01mm micrometer

Optional Accessory:

- 1.3, 2.0, 3.0, 5.0 Megapixels CMOS electronic eyepiece

- Photography attachment
