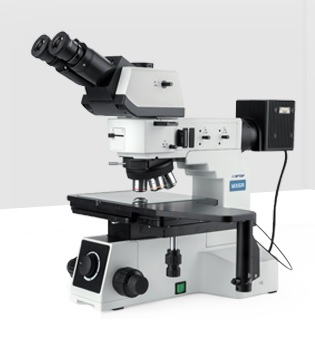

INSIZE 5108-M3000 金相显微镜 (Ø25mm)
制造商: INSIZE Model: 5108-M3000 - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Eyepiece: high eye point large field SWH10X-H( view field: Ø25mm, adjustable visibility)
Objective (infinite long working distance bright and dark field semi achromatic): 5X, 10X, 20X, 50X
Working distance: 15mm, 8.4mm, 10.3mm, 3.0mm
Numerical aperture: 0.15, 1.30, 0.40, 0.75
Optical magnification: 50X~500X(up to 1000X with optional 100X objective)
Digital magnification: 170X~1700X(on 21.5" monitor), up to 3400X with optional 100X objective
Stage: Double
Size: 310x140mm
Travle: 150x100mm
Condenser: Roll-out achromatic condenser( numerical aperture 0.9)
Illumiriation: 5W LED, transmitted and reflected
Observation Tube: inverse image, distance adjustment: 50~76mm, two grade spectral ratio binocular:trinocular=100:0
Diopter adjustment: ±5 diopter (two eyepieces)
Power Supply: built-in 100-240V
Dimension(LxWxH): 310x600x500mm
Weight: 27kg
Standard Delivery
Main unit: 1pc
Anti-dust cover: 1pc
0.65X camera adapter(adjustable focus) 1pc
Polarizer and analyzer: 1pc of each
Optional accessory
Camera and software: ISM-CM63
Glass calibration rule: ISM-MAS-SCALE
Computer: 5108-M-COMPUTER
2.5X infinite long working distance bright filed semi achromatic objective: 5128-M-OB2.5X
100X infinite long working distance bright and dark filed semi achromatic objective: 5128-M-BD100X
50X infinite long working distance bright and dark filed achromatic objective: 5108-M-APO50X
100X infinite long working distance bright and dark filed achromatic objective: 5108-M-APO100X
Differential interference module(DIC): 5108-M-DIC
