JBC PHSE-2KB PCB预热器套件 (230V, 800 W, 50 ~ 250 ºC)

制造商: JBC
Model: PHSE-2KB
来源: Spain
联系
- 报价要求
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

Peak power: 800 W

Selectable temperature 50 to 250 ºC / 120 to 482 ºF

Heating area

65 x 135 mm / 2.6 x 5.3 in - 1 zone

130 x 135 mm / 5.1 x 5.3 in - 2 zones

Type K TC connector: 4 for Control & Protection

Profiles: 22 (up to 16 steps for each)

Set temperature profiles: 3 profiles (2, 3 or 4 steps)

Maximum work time: 50 min or indefinite

ESD safe: Meet ANSI/ESD S20.20-2021

USB-A: Firmware update/ Graphics and profiles

USB-B: PC communications

Robot connector: Remote control

Aux. connector: Console connection

Pedal connector: Connect a pedal (ref. P-005) to control the heater

Weight and dimensions

PreHeater Unit

195 x 288 x 42 mm / 4.78 kg.

7.68 x 11.34 x 1.65 in / 10.54 lb.

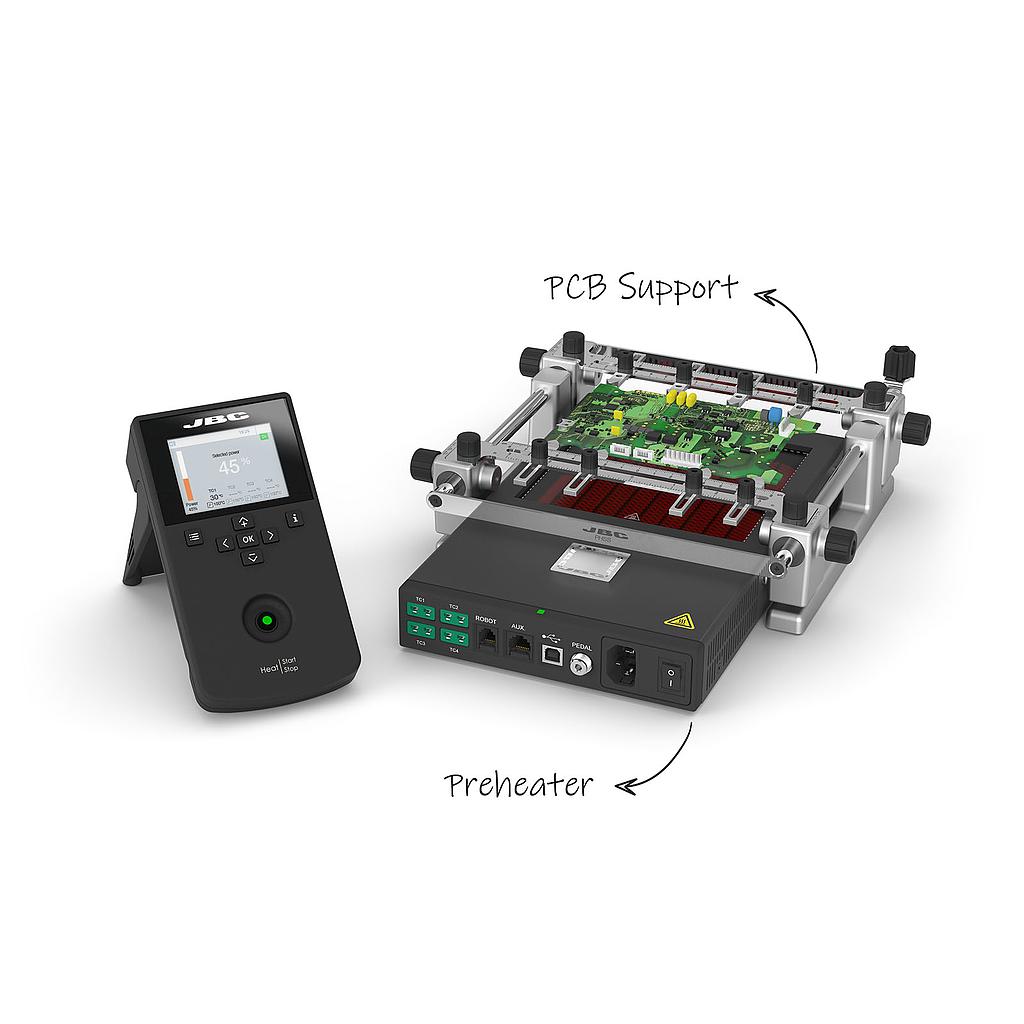

PRODUCT COMPOSITION

1 Instruction Manual

1 Heater unit

1 Console

1 PHSS Support for PCBs up to 13 x 13 cm / 5 x 5"

2 PH218 Thermocouple Type K

1 PH217 Kapton Tape
