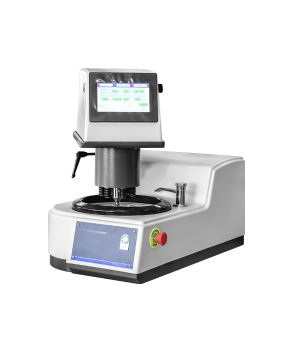

LABTT LAP-1000XP 全自动金相研磨抛光机
制造商: LABTT Model: LAP-1000XP - 报价要求
- 报价要求
- 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Station: Single disc
Working disc diameter: Standard with φ254mm (optional φ230mm/φ203mm, customized φ304mm) with magnetic conversion disk system
Rotate speed: 50-1000 RPM reverse rotation can be switched
Sample plate speed: 30-200 RPM reverse rotation can be switched
Manual mode: You can select 30 groups of parameters, each set and invoked separately
Automatic mode: 30 sets of process (process), each set of process contains 10 steps of process parameters (from process 1 to process 10 automatically, each step has an independent set of parameters)
Sample holder: 30mm can be 6 holes (optional 20mm 6 holes, 40mm, 50mm 3 holes, others can be customized)
Grinding head locking mode: Electromagnetic automatic lock
Drip device (optional): 4 channel; Grinding and polishing machine controls the drip operation
Working air source pressure: More than 0.6MPa
Motor power: 0.75 Kw
Power supply: AC220V, 50/60Hz, 2KW
Overall dimensions: 760 x 470 x 700mm
Weight: 63kg
Standard Accessory
input-water pipe 8mm: 1
4-point filter (60 mesh, double layer): 4
Hose hoops: 1
Fast twist joint: 1
waterproof ring: 2
Data cable: 1
Touch pen: 1
diamond polishing liquid,6micron,200ml: 1
one side sticky grinding paper(250 mm) 180#、320#、600#、1000#: 2 each
output-water pipe 25mm: 1
Rubber pad with strainer: 1
Triangle valve: 1
Teflon tape: 1
hook: 1
power cable: 1
machine manual; machine certification: 2
Anti-sticky disc(250mm): 2
Polished cloth (with glue, 250mm) Flocking (brown), canvas: 1 each
