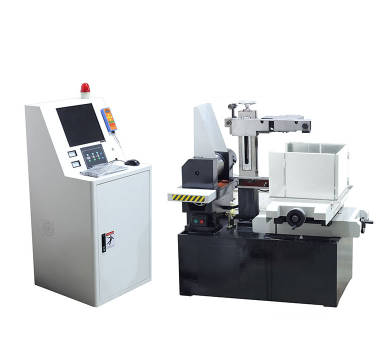

LABTT LC-250L 金相线切割机
- 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Cutting speed reaches mm2/H 9500
Processing precision mm ± 0.01
Cutting surface roughness μ m Ra≤2.5
Minimum feed increment 0.001 mm
Worktable size mm 300 × four hundred
Worktable stroke (X * Y) mm 200 × two hundred and fifty
Z-axis stroke mm 220
Maximum cutting slope/workpiece thickness mm ± 3 °/80
Normal/maximum cutting current at A 4-6/9
Wire speed m/s 0-12m/s, adjustable by frequency conversion
Diameter of electrode wire mm Φ 0.10-0.22
Molybdenum wire loss 160mm2/min, continuous cutting 150000 mm2, wire loss ≤ 0.01 mm
Water tank volume 50L
Input voltage 220-380V/AC ± 10% 50-60Hz
Power KVA 2
Maximum bearing kg 2520
Main engine weight kg 800
Weight of electrical control cabinet kg 80kg
Boundary dimension of electrical control cabinet mm 600 × seven hundred × one thousand and three hundred
Packing size of main machine mm 1000 × nine hundred × one thousand and three hundred
