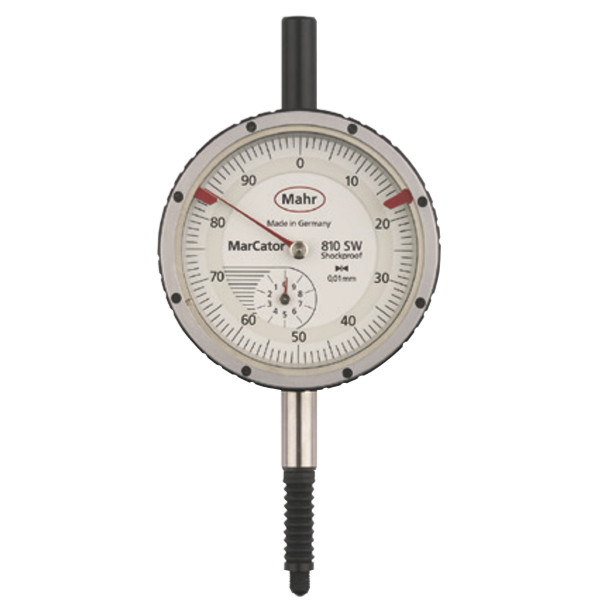

Mahr 4315000 Water- and Dust-Resistant Dial Indicator (810 SW, 10mm)
制造商: Mahr Model: 4315000 来源: Germany - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Product type 810 SW
Measuring span: 10mm
Graduation value: 0.01mm
Type of dial face: 0-100
Range per rev.: 1mm
Error limit: 15µm
Error limit, 1 revolution: 10µm
Error limit, 1/2 revolution: 9µm
Error limit, 1/10 revolution: 5µm
Repeatability fw: 3µm
Hysteresis fu: 3µm
Overtravel: 0.1mm
Measuring force incoming measuring pin N: 0.7 – 1.6
Standard: DIN 878
Shockproof movement: yes
Lifting protection cap: yes
Dial color: White
Package contains: case
Accessories:
Adapter bush (.375” / 8 mm), type 940
Lug back, vertical, for 803, 810
Lug back, horizontal, for 803, 810
