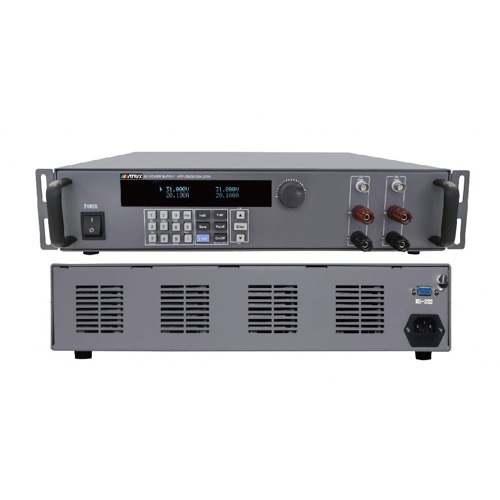

MATRIX MTP-203 多通道直流电源 (60V*2CH, 15A*2CH, 1800W)
制造商: MATRIX Model: MTP-203 - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Rated output voltage: 0-60V*2CH
Rated output current: 0-15A*2CH
Rated output power: 1800W
Rated input voltage: AC 220V/110V ± 10%
Voltage transformation method: Switching Mode Power Supply
Load regulation:
Voltage: ≤ 0.1% + 20mV
Current: ≤ 0.1% + 5mA
Line regulation:
Voltage: ≤ 0.1% + 20mV
Current: ≤ 0.1% + 5mA
Setting resolution:
Voltage: 1mV
Current: 1mA
Setting accuracy:
Voltage: ≤ 0.1% + 10mV (25°C ± 5°C)
Current: ≤ 0.3% + 8mA
Readback resolution:
Voltage: 1mV
Current: 1mA
Readback accuracy:
Voltage: ≤ 0.1% + 10mV (25°C ± 5°C)
Current: ≤ 0.3% + 8mA
Temperature coefficient:
Operating environment: 0 to 40°C ≤ 85% R.H
Storage environment: -15 to 70°C ≤ 85% R.H
Machine size (WxHxD): 440x90x340 mm
Net weight: 9 kg
Gross weight: 11 kg
Datasheet
Catalog
Features
• Voltage and current can be set through a numeric keypad and knob
• Resolution of 1mV voltage and 1mA current
• Two independent adjustable channels, isolated from each other
• Voltage compensation function ensures accuracy
• List sequence output function
• Standard 2U model
• Intelligent temperature controlled fan for a quieter usage environment
• 9 sets of preset storage functions
Applications
■Prouduction line work bench routine test
■Lab and institute
■Electronic repair
■ Automated equipment integration testing
