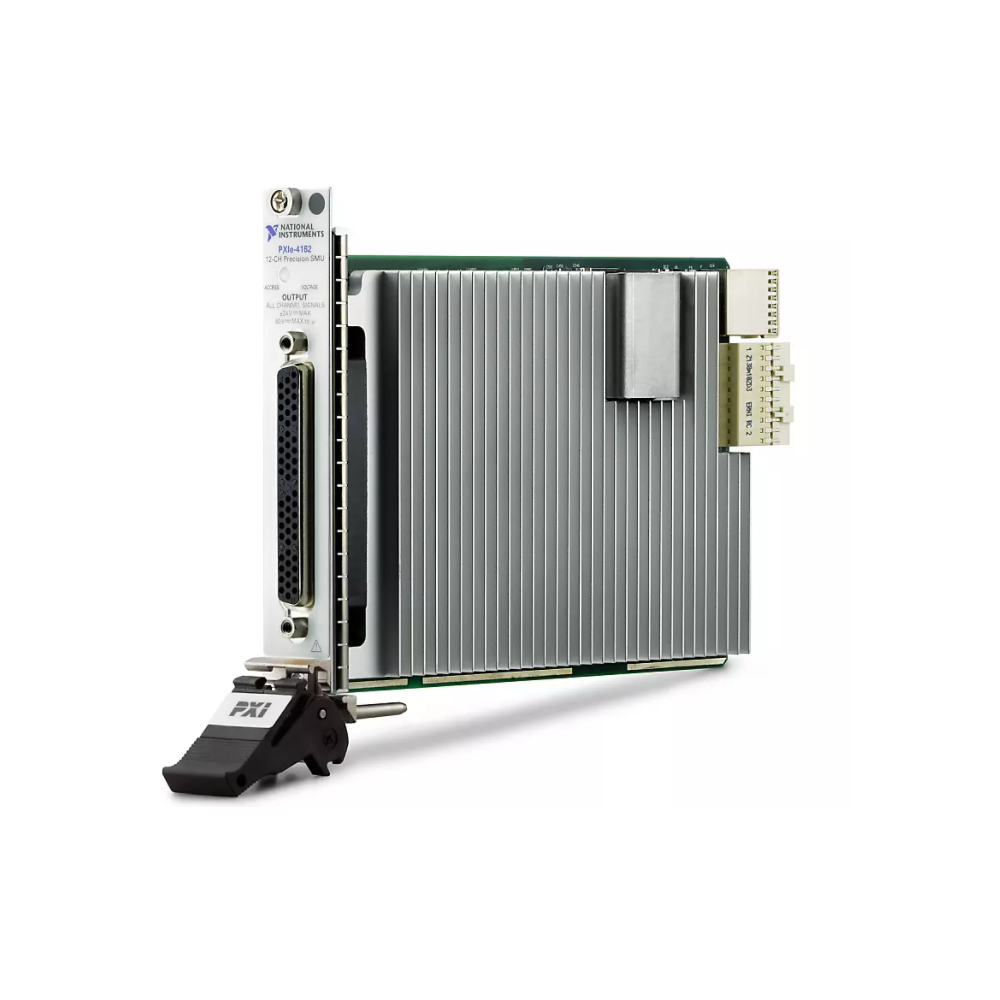

NI PXIe-4162 PXI Source Measure Unit (12-Channel, DC ±24V/±100mA)

Number of SMU Channels: 12

Max DC Source Power: 2.4 W

Max DC Sink Power: 1.2 W

Voltage Range: -24 V to 24 V

Current Sensitivity: 100 pA

Source Adapt: Yes

Includes Auxiliary Power: —

DC Current Range: -100 mA to 100 mA

Pulsed Current Range: —

Details

Provides precise voltage or current sourcing and measurement capabilities for PXI systems.

PXI Source Measure Units (SMUs) combine high-precision source and measure capability with features designed to reduce test time and increase flexibility. These features include high channel density for building parallel SMU test systems, deterministic hardware sequencing for minimizing software overhead, and high-speed update and sample rates for quickly changing setpoints and acquiring data. Additionally, the flexible sampling rate and streaming capability of PXI SMUs allows you to use the instrument as a digitizer to capture transient behavior, and the digital control loop gives you the ability to adjust the transient response of the instrument. The ability to change the transient behavior of the SMU, called SourceAdapt, reduces SMU settling time and minimizes overshoot and oscillations, even with highly capacitive loads.

Datasheet
