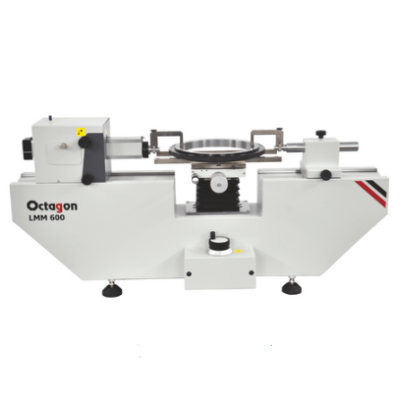

Octagon LMM 600 万能测长机 (600mm, 0.5+ L/1000um)
制造商: Octagon Model: LMM 600 - 报价要求
- 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measuring Range
Absolute: 100 mm
Differential: 600 mm
Application Range
External Plain: 0-600 mm
Internal Plain: 3 to 450 mm
Cylindrical Thread External (d2) (Pitch: 0.2 - 6 mm): 1 - 550 mm
Cylindrical Thread Internal (D2) (Pitch: 0.5 - 6 mm): 3 - 450 mm
Gear External (MdK): 7 - 550 mm
Gear Internal (MdK): 30 - 450 mm
Measuring Instruments
Dial Indicators, Dial test indicators, Cylinder bore gauges: up to 100 mm
Internal Micrometer - 2 point: 600 mm
External Micrometer: 400 mm
Performance data
X axis resolution: 0.1 pm
Measurement uncertainty: 0.5+ L/1000pm
Measuring force: 0.2 N.2N
Work Table /Vertical Axis
Work table dimension: 160X160 mm
Height adjustment: 100 mm
Resolution: 0.1 pm
Float: 20 mm
Rotation: ±1.5°
Tilt: ±1.5°
Load Capacity: 20 kg
Dimensions, weight and operational conditions
LxWxH: 1150x250x470 mm
Weight (kg): 120 kg
Power supply: 230 VAC, 50 Hz
Display System: DRO/PC based
