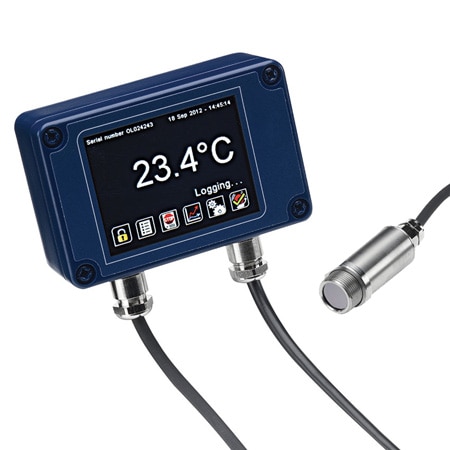

OMEGA OS-MINI212-MA-LT Miniature Fixed Infrared Temperature Sensor with Optional Touch Screen Display (2:1, 100 °C)

Memory: 2 GB

Weight: 390 g

Display: No

Impedance: 900 Ω

Statistics: Average, Maximum, Minimum, Peak Hold, Valley Hold

Alarm modes: Adjustable, High, High/Low, Low

Cable Length: 1 m

Current Draw: 100 mA

Display Size: N/A

EMC Standard: EN61326-1:2006, EN 55022A, EN 55022B, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6

File Formats: BMP

Accuracy Note: ± 1°C or 1%, whichever is greater

Field of view: 2:1

Housing Width: 98 mm

Output Signal: Current

Response Time: 240 ms

Sampling Time: 1 to 86,400 sec

Data Interface: N/A

Housing Height: 64 mm

Housing Length: 36 mm

Supply Voltage: 24 Vdc

Emissivity, Min: 0.2

Housing Material: Aluminum

Variables Logged: Target temp, Sensing head temp, electronics module temp, max, min, average, emissivity setting, reflected energy compensation, alarm events

Cable Length Note: 1 m (3.3') (standard), up to 30 m (98.4') (optional)

Supply Power Note: 24 Vdc ± 5%

Repeatability Note: ± 0.5°C or 0.5%, whichever is greater

Response Time Note: 240 ms (90% response)

Settable Parameters: Alarms, Data Logging, Date, Emissivity Setting, Modbus Address, Reflected Energy Compensation, Signal Processing, Temperature Range, Temperature Unit, Time

Sensing head Material: Stainless Steel

Internal Clock Battery: 1 x BR1225 3V (not included)

Relative Humidity Note: 95% non-condensing

Relative Humidity, Max: 0.95

Spectral Response, Max: 14 μm

Spectral Response, Min: 8 μm

Temperature Resolution: 0.1 °C

Display Measuring Units: °C, °F

Configuration Parameters: Number of Samples, Sample Period, Scheduled start date and time

Process Temperature, Max: 100 °C

Process Temperature, Min: -20 °C

Emissivity Setting Method: Rotary Switch

Operating Temperature, Max: 60 °C

Electronics Module Mounting: 4 mm

Electronics Module Mounting Note: Two m4 screws for wall mounting (see diagram on data sheet)
