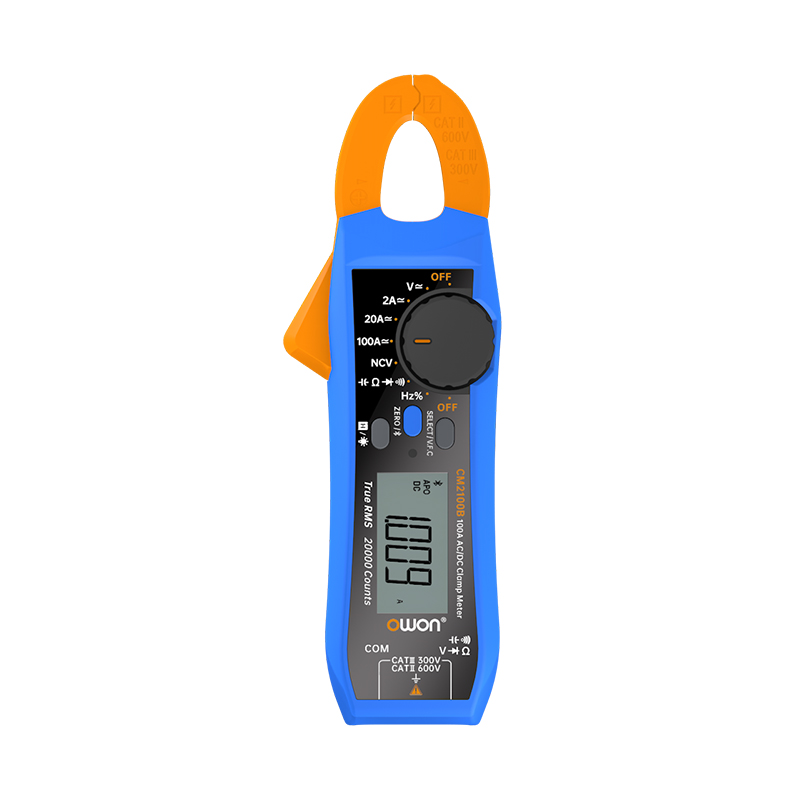

OWON CM2100 智能AC/DC钳形表 (100.0A , RMS)

AC Current (A)

Range: 2.000A Accuracy: ±(3%+10dig)  in VFC ±（4%+10）

Range: 20.00A / 100.0A Accuracy: ±(2.5%+5dig)  in VFC ±（4%+10）

AC Voltage（V）

Range: 2.0000V / 20.000V / 200.00V / 600.0V Accuracy: ±(0.8%+10dig)  in VFC ±（4%+3)

DC Current (A)

Range: 2.000A Accuracy: ±(2%+8dig)

Range: 20.00A / 100.0A Accuracy: ±(2%+3dig)

DC Voltage（V）

Range: 200.00mV Accuracy: ±(0.7%+10dig)

Range: 2.0000V / 20.000V / 200.00V / 600.0V Accuracy: ±(0.5%+5dig)

Resistance（R）

Range: 200.0Ω Accuracy: ±(0.8%+10dig)

Range: 2.0000kΩ Accuracy: ±(0.5%+10dig)

Range: 20.000kΩ / 200.00kΩ / 2.0000MΩ Accuracy: ±(0.5%+10dig)

Range: 20.000MΩ Accuracy: ±(1%+10dig)

Range: 200.00MΩ Accuracy: ±(5.0%+10dig)

Capacitance (F)

Range: 2.000nF Accuracy: ±(4.0%+10dig)

Range: 20.00nF/ 200.0nF/2.000uF; 20.00uF / 200.0uF / 2.000mF/ 20.00mF Accuracy: ±(3.0%+10dig)

Frequency (Hz)

Range: 200.00Hz / 20.000kHz / 200.00kHz / 2.0000MHz / 20.000MHz Accuracy: ±(0.1%+5dig)

Duty cycle (%)

Range: 0.1% - 99.9%( typical：Vrms=1 V, f=1kHz) Accuracy: ±(1.2%+3dig)

Range: 0.1% - 99.9%(≥1 kHz) Accuracy: ±(2.5%+3dig)

Special Funciton

Display: 20000 conuts

Bluetooth Module: (only for CM2100B)

Frequency ResponesL: 40Hz - 1000Hz

Zero

Auto Ranging

Low-battery Indicator

Date Hold

Relative Measurement

Diode

Input Protection

Continuity Buzzer

In put Impedance: ≥10MΩ

NCV

Overrange Alarm

VFC

On-off Warning

Other

Jaw Capacity: 17mm

Battery: 2 x 1.5V AAA

Dimension (L x W x D): 182mm x 57mm x 32mm

Weight (without package): 0.2kg
