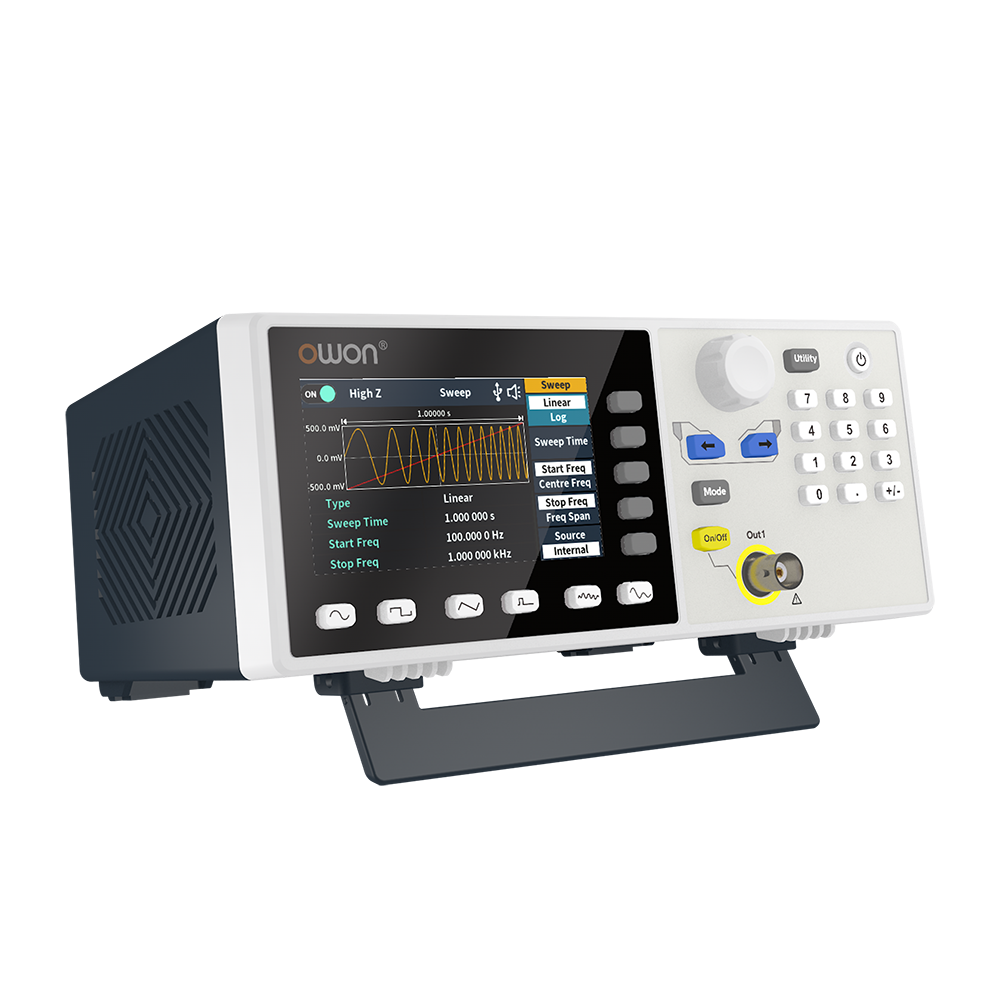

OWON DGE3061 Waveform Generator (1CH; 60MHz)

Channel: 1

Frequency Output: 60MHz

Sample Rate: 300MSa/s

Vertical Resolution: 14 bits

Waveform:

Standard Waveform: sine, square, pulse, ramp, noise

Arbitrary Waveform: exponential rise, exponential fall, sin(x)/x, step wave, and others,total 160 built-in waveforms

Frequency (resolution 1μHz):

Sine: 1μHz-60MHz

Square: 1μHz ~ 20MHz

Pulse: 1μHz ~ 20MHz

Ramp: 1μHz ~ 2MHz

Noise: 20MHz (-3dB，typical)

Arbitrary Waveform: 1μHz ~10MHz

Arbitrary:

Waveform Length: 2 points – 100K points

Sample Rate: 300MSa/s

Amplitude:

into 50Ω load: 1mVpp ~ 10Vpp（≤10Hz）; 1mVpp ~ 5Vpp （≤60MHz）

DC Offset Range （AD+DC）: ±(10 Vpk – Amplitude Vpp/2) high resistance; ±(5 Vpk – Amplitude Vpp/2) 50 Ω

DC offset resolution: 1mV or 4digits

Load Impedance: 50Ω (typical)

DC offset Accuracy: ±(1 % of |setting| + 1 mV + amplitude Vpp * 0.5%)

Modulation:

Type: AM、FM、PM、PWM、FSK、3FSK、4FSK、PSK、ASK、BPSK、OSK、DSB-AM、QPSK、SUM、Sweep、Burst

Frequency Counter:

Function: Frequency， period

Frequency Range: 100mHz ~ 200MHz

Frequency Resolution: 6 digits

Input / Output:

Display: 3.6” LCD

Input mode: external modulation input, external trigger input, external reference clock input / output

Communication Interface: USB Host, USB Device

Mechanical specifications:

Dimension (W×H×D): 200 x 92 x 157mm

Weight (without package): 0.8kg
