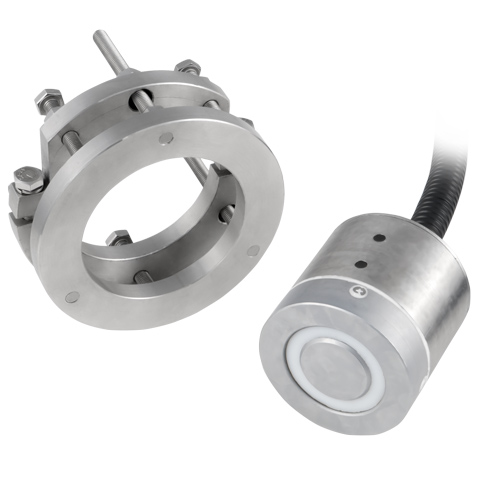

PCE MWM 300P 谷粒湿度传感器/ 温度/ 高精度

Specification

Measuring Range: 0 ... 100 %

Maximum permissible error (absolute): Δ= 0.035 + 0.05 x W

Temperature measurement range: -40 ... +150 °C / -40 ... +302 °F

Operating temperature range: -20 ... +80 °C / -4 ... +176 °F

Working mode: continuous operation

Measuring interval: 0.2 s

Power supply: 24 (18 ... 36) VDC

Current consumption: 200 mA

Warm-up time (start-up): 90 min

Outputs: RS 485 Modbus RTU, 4-20 mA [RS485: max. cable length 1000 m; 4-20 mA: max. cable length 100 m (max. cable length up to the PLC)

Inputs: 2 x digital 24 VDC

Dimensions (sensor): 108 х 120 mm / 4.3 x 4.7 in

Dimensionen (electronics unit): 255 х 170 x 60 mm / 10 x 6.6 x 2.3 in

Protection (sensor): IP67

Protection (electronics unit): IP54

Weight (sensor): 3.5 kg
