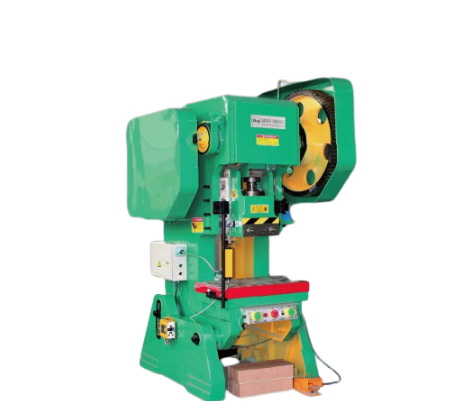

Rbqlty J21-200 倾斜式机械动力冲床 (2000KN)
制造商: Rbqlty Model: J21-200 - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Nominal Force (KN): 2000
Stroke of Nominal Force (mm): 12
Stroke of Sliding Block (mm): 180
Number of Strokers (times/min): 28
Closed Height (mm): 420
Closed Height Adjustment (mm): 120
Distance From Slider Block Centre To the Frame (mm): 390
Length Between Columns (mm): 680
Hole Size for Die Handle:
+ Diameter (mm): 90
+ Depth (mm): 150
Size Of Worktable:
+ Left - right (mm): 1390
+ Front - Back (mm): 820
Blanking Hole Diameter (mm): 220
Table Plate Thickness (mm): 150
The Maximum Tilt Angle (°): -
Dimensions:
+ Left - right (mm): 2015
+ Front - Back (mm): 2475
+ Height (mm): 3780
Power (KW): 18.5
