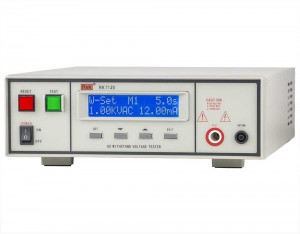

Rek RK7120 程序耐高压测试仪 (AC:5KV, 12mA; DC: 6kV, 5mA)
制造商: Rek Model: RK7120 - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Withstand Voltage Test Output Voltage(KV)
AC: 0-5
DC: 0-6
Test Accuracy: ±(2% Setting Value+5V)
Output Current(MA):
AC: 0.10-12.00
DC: 0.10 - 5.00
Test Accuracy: ±(2% Setting Value+2Counts)
Test Time: 0.2～999.9s
Output Frequency: 50Hz/60Hz(Optional)
Input Characteristics: Single Phase47～63Hz,115V/230V AC±15%(Optional)
Communication Interface:
Input:Test/Reset Output:Pass/Fail/Test/Process
Test Instrument Failure Alarm: Buzzer,Liquid Crystal Display “FAIL”,Indicating Lamp
Memory Group: Group Memory,There Are 4 Test Modes In Each Group(W,IW-I,I-W Linking)
Keyboard Security Lock: Optional:”Locked” Or “Unlocked”
Exterior Dimension: 380*290*100mm
Weight: 7.6kg
Accessory: Test Line,Ground Wire,Power Line
