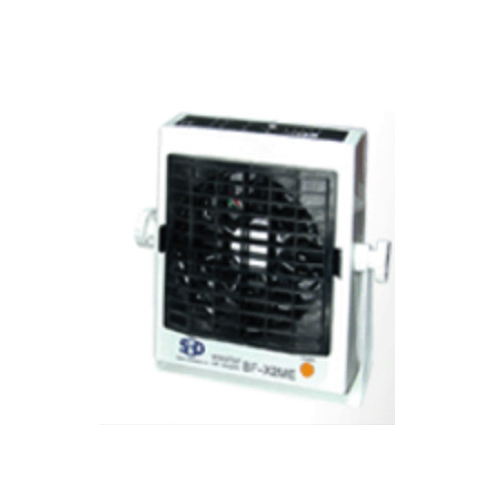

Shishido BF-X2ME 静电消除器鼓风机 (12 VA)

Input Power: DC24V (AC adaptor AC100~240V available)

Capacity: 12 VA

OUTPUT VOLTAGE: ±7,500 V0-p

ION BALANCE: Below ±5 V(Distance at 300mm)

Air Volume: 1.4 to 3.5 m3 / min

Air Speed

1.5 to 2.9 m/sec(with Straight Louver at 300mm center)

0.1 to 0.3 m/sec(with Wide angle Louver at 300mm center)

Ozone Density: Below 0.004 ppm(Distance at 150mm)

Avilable Environment: Indoor use, 0 to 40℃, 15~85%RH (without condensation)

Filter: Pre-filter level

Signal Output: MOS FET Relay Non-voltage contact (NC output) HV alarm or fan alarm: OFF

Main unit Dimensions:  150×182×66 mm (W×H×D) not including Fixing Bracket and projecting portion

Weight: Appox 1000g(with Bracket)

Noise Level: 59dB (A) (at 1m distance)

Accessories: Manual, AC Adaptor, Signal output cable, Cleaning Brush, Wide angle louver

Optional Part:

Emitter Needle unit :DNU-W85

Filters :OBF-F2MA-1-10(package of 10)
