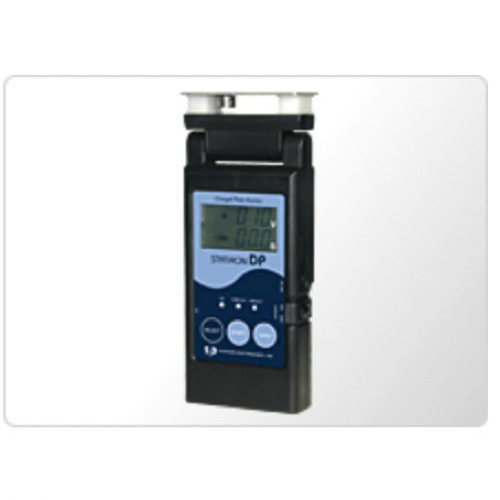

Shishido DP 静电测量仪 (12pF ±1pF)

Signal detection method: Oscillating chopper *1

Plate Size: 70×32 mm (IEC standard 150×150 mm)

Plate Capacity: 12pF ±1pF

Measuring Accuracy: ±10%rdg ± 2 digit

Measuring Voltage Range: 0~±1999 V

Measuring Time range: 0.0 to 99.9 sec

Angle of Rotary head: 180 degree (hold each 45 degree)

Battery Check: Indicate in LCD indicator

Power Supply: Two 1.5V DC AA-type alkaline battery or AC adapter

Weight: 240 g

Main Unit Dimensions: 70×174×31 mm (W×H×D)

Accessories: 1.5V DC AA-type battery (2 pcs), Soft case, Grounding cable

Operation Environment: 0~40℃ *2

Optional Part: AC Adapter(ODP-DA) for AC100 to 240V

*1: The occilation chopper is very susceptible to shock such as being dropped. Take care not to subject it to strong shock when using it.

*2: Under high humidity environment as over 85% humidity, it will cause the problem to charge the high voltage onto the plate
