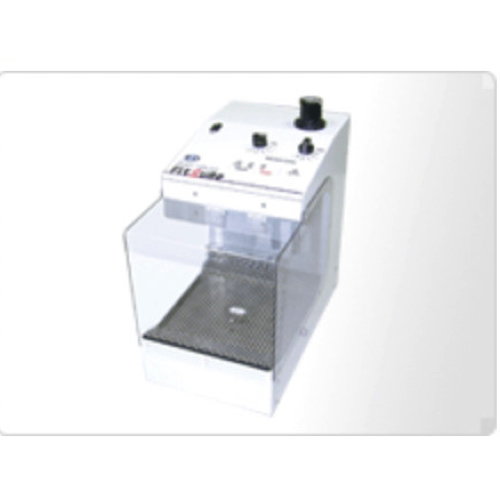

Shishido Trz:CuBe 静电除尘器 (AC100V~240V ±10%)

Input Voltage: AC100V~240V(50/60Hz) ±10%

Electric consumption: Maximum 240W

Ionizer Specifications: Discharge Method: HDC-AC

Ion Balance: Below ±30V

Decay time: Below 1 second (0.6MPa air pressured)*1

Supplied Air: CDA (Clean and dried air) *2

Available Air pressure: 0.2MPa ~ 0.6MPa*3

Size of air fitting: Diameter 8mm

Air Blow nozzle: Upper side: 2units(Angle adjustable)

Down side: 1unit

Filter Specification: Correct 98% of the particle over 10 μm

Air Blow Pulse setting: 1Hz, 3Hz, 5Hz, 10Hz, Cont

Air Blow Time setting: 3 sec, 5 sec, 10 sec, 15 sec, Real

Fan Speed: Non-step adjustable: -

Air Consumption: 270ℓ/min ANR (at 0.3MPa Cont setting)

Vacuum System: Fan

Sound Level: Minimum fan speed:51dBA 50% Fan speed: 74dBA

Dimensions: 225x360x400mm(WxHxD)

Weight: Approx. 9kg

Available environment: 0~40°C / 15~85%RH (without condensation)

Accessories: Manual, Power Cable, Filter, Protector rubber(3pices)

Option Part: Filter (5 piecs): Trz-RKF05

*1: Checked by CPM with 150x150mm plate (20pF), Decay time is from ±1000V to ±100V.

*2: Supplied air must be Clean and Dry, the air contaminated with moisture or oil will makes damage to the ionizer.

*3: Setting level of the air regulator.
