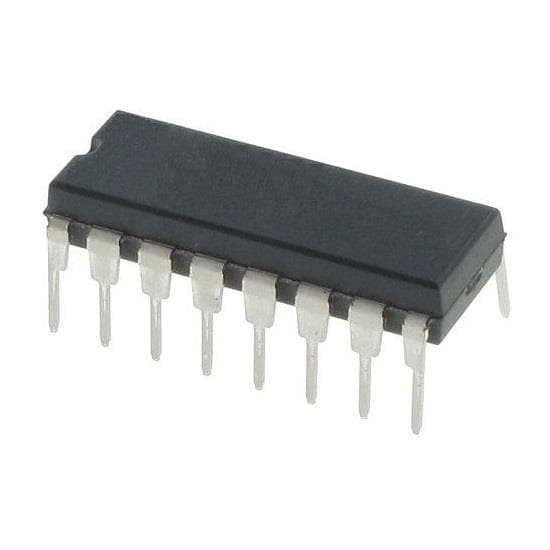

Vishay Siliconix DG409DJ-E3 Multiplexers PDIP-16 MULTIPLX SW 4CH
制造商: Vishay Siliconix Model: DG409DJ-E3 - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 7.11 mm
Height: 3.81 mm
Length: 21.33 mm
Supply Type: Single Supply, Dual Supply
Unit Weight: 1.628 g
Configuration: 2 x 4:1
On Time - Max: 150 ns
Mounting Style: Through Hole
Off Time - Max: 150 ns
Number of Channels: 4 Channel
Dual Supply Voltage: +/- 15 V
On Resistance - Max: 100 Ohms
Supply Current - Max: 500 uA
Supply Voltage - Max: 36 V
Supply Voltage - Min: 5 V
Switch Voltage - Max: 15 V
Pd - Power Dissipation: 450 mW
Operating Supply Voltage: 5 V to 36 V
Maximum Dual Supply Voltage: +/- 20 V
Minimum Dual Supply Voltage: +/- 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
