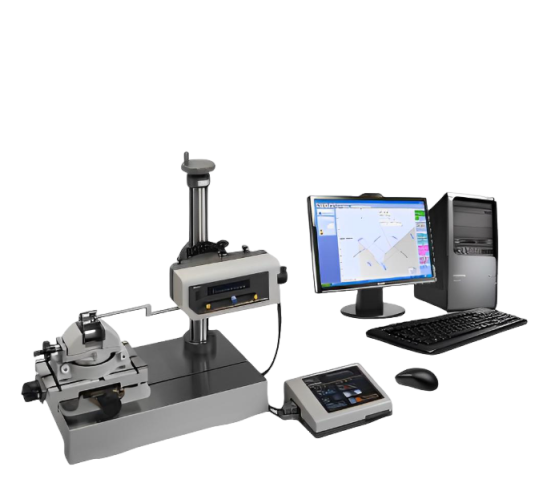

SM Metrology PGS100 轮廓仪 (0.2 mm/s ~ 2 mm/s, 20 μm)
制造商: SM Metrology Model: PGS100 P/N: 3.102 - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Unit of measure: Millimeters and inches
Exploration stroke (X): 130 mm (5.12 in)
Measuring range (Z): 50 mm (1.97 in)
Column travel (Y): 320 mm (12.6 in), manual
Sampling interval (X): 0.5 μm (0.02 μin)
Z axis resolution: 0.2 μm (0.008 μin)
Positioning speeds: 0-10 mm/s (0-7 in/s)
Measurement speed: From 0.2 mm/s to 2 mm/s (from 0.008 in/s to 0.08 in/s)
Tip radius: 20 μm (0.8 μin)
CNC cycles: Automatic CNC measuring and positioning cycles with self-comparison of the measured profiles
Connection: USB interface to Windows PC (©)
Languages: Italian, French, English, German, Spanish, Portuguese, and Slovenian
Dimensions: 1013 × 400 × 679 mm (L × W × H)
Total weight: 34 kg (75 lbs)
Supply voltages: 110-240 V ; 50-60 Hz
Working temperatures: 15 - 25°C (59 - 77°F)
Software: Profile Studio Basic
