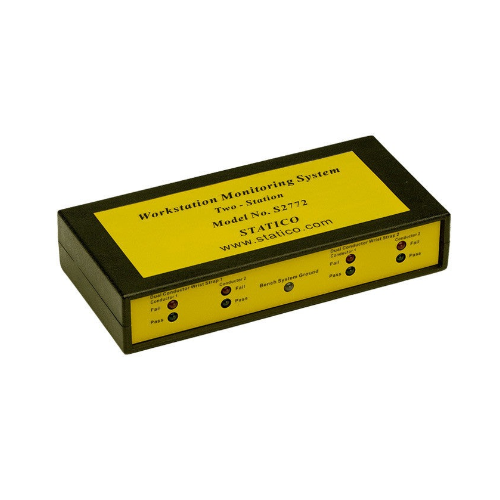

Statico S2772 工作站监控系统 (2V DC; 1.6 mA DC)

Electrical Specifications

• Operator Resistance Range: R<6.8 M, +/- 10%

• Ground System Range: R<6.8 M, +/- 10%

• Maximum Wrist Strap Voltage: 2V DC

• Maximum Wrist Strap Current: 1.6 mA DC

• Maximum Mat Voltage: 4V DC

• Maximum Mat Current 1.8 mA DC

Mechanical Specifications

7-1/4”L X 3”W X 1-1/4” H (160mm L X 75mm W X 30mm H)

S2772 Includes:

1 Each The Monitor

1 Each An Adapter

1 Each A Connection Cord (Monitor-To-Mat); 81” L (2060mm)

2 Each A Remote Connection Cord (Wrist Strap-To-Monitor); 70” (1780mm)

2 Each 2” L X1” W (50mm L X 30mm W) Hook & Loop Velcro pcs

2 Each Screws

1 Each Alligator Clip

2 Each a Dual Conductor Wrist Strap with 6’ Coil Cord (Also available with 12’

 Coil Cord).
