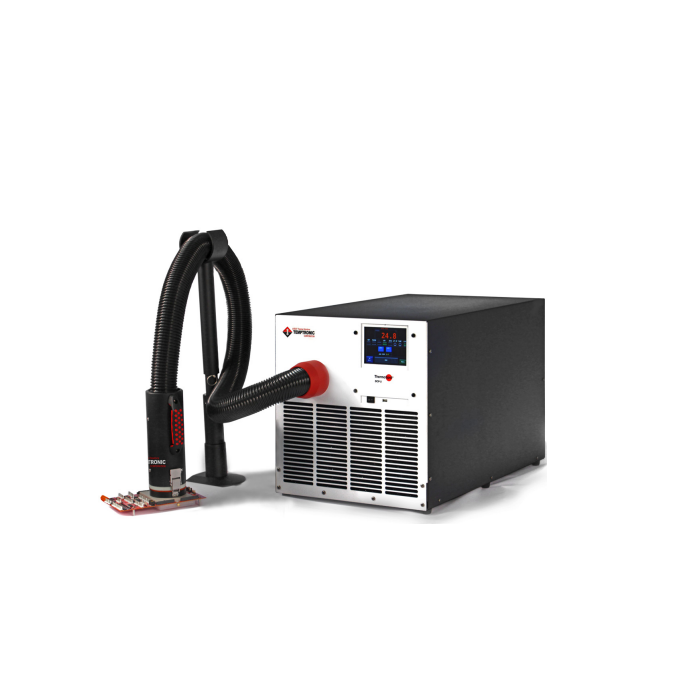

Temptronic DCP-202 工作台顶部温度强制系统 ( -65 ~ 175°C)

Temperature Performance1 Range: -65 to 175°C @ 23°C ambient,

Accuracy: ±1.0°C; Stability: ±0.3°C

Cooling Power: 55W @ -55°C, 125W @ -40°C, 250W @ 0°C

Transition Rates: 25 to -40°C, <35 sec, 25 to +125°C <1.5 min

Temperature Sensors: Main sensor: RTD, DUT sensors: K thermocouple, Diode, 100Ω RTD, Analog

Temperature Calibration: Software calibrated

Communications Interface: Ethernet (TCP/IP), USB / Optional IEEE488, RS232

Maximum Force Allowable on Thermal Head: 980.6 N (220.4 Lbf)

DUT Dimensions: From 2 x 2mm to 50 x 50mm (0.079” x 0.079” to 2.0 x 2.0”)

Operator Interface:

    5.25” color touch-screen, programmable with 0.1°C resolution

    Preset temperatures, ramp, soak, cycle. Ramp rate control, Graphing and data logging, Web server, Offset calibration.

    Analog temperature inputs

Thermal Head: 89mm (3.5”) diameter

Thermal Head Hose: 1.8 meters (70”) long, optional 3.0 meters (118”) long

Frost Free Thermal Head: Low flow dry air or nitrogen purge 0.05cfm, -70°C (-94°F) dew point controlled automatically

Physical Dimensions: 610mm D x 445mm W x 445mm H (24”D x 17.5”W x 17.5”H)

System Weight: 66 Kg (145 lbs.)

Noise Level: 55 dBA

Power Requirements: 115 VAC (±10%), 15 amp, 60Hz, 208/230 VAC (±10%), 10 amp, 60Hz

Purge Dry Air Supply; User supplied, regulated, -70°C (-94°F) air or nitrogen, 0.1cfm at 0.2 BAR

Operating Environment:

     Temperature: 5 to 35°C (40 to 95°F)

     Humidity: 20 to 95% RH

Compliance: CE | RoHS | EU 517/2014 | designed to meet UL61010
