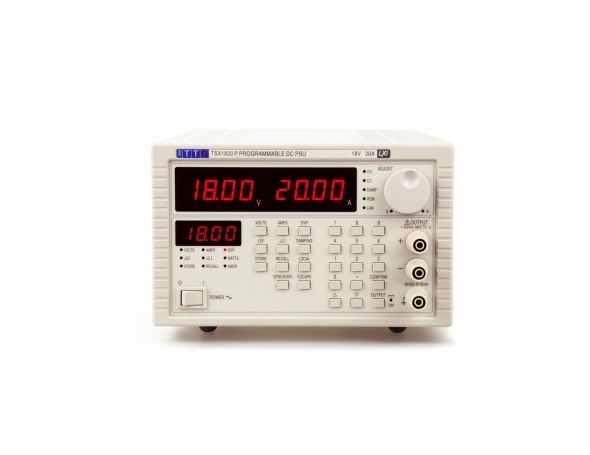

TTI TSX 3510P Lxi 直流稳压电源 (0~35V, 0~10A, 350W, USB/RS232/LAN(LXI))

Voltage range: 0V to 35V

Current range: 0A to 10A

Overvoltage protection: 1V to 40V (35V/10A); 1V to 25V (18V/20A)

Load regulation:

- Constant voltage: <0.01% ± 5mV

- Constant current: < 0.01% ±0.5mA

Line regulation:

- Constant voltage: <0.01% ± 5mV

- Constant current: < 0.01% ± 250uA

Ripple & noise: Typically <1mV rms; <3mVrms max in CV mode

(20MHz bandwidth) Typically <3mA rms; <5mArms max in CI mode

HF common mode noise: Typically <3mV rms, <15mV pk

Transient response: 100μs to within 50mV of setting for a 5% to 95% load change.

Temperature coefficient: Typically <100ppm/°C

Overvoltage protection delay: <200μs

Protection functions:

 Overvoltage trip.

 Regulator over temperature.

 Sense miswiring.

Status indication: LED indicators for Output ON, constant voltage mode, constant current mode, current meter damping, remote operation, and LAN status; trip & error messages on display.

Output terminals:

 Front panel: Universal 4mm safety binding posts on 19mm (0·75”) spacing

 Rear panel: Terminal block screw terminals.

Output protection:

 Forward protecton by Over-Voltage-Protection (OVP) trip.

 Output will withstand an applied forward voltage of up to 50V (35V/10V), 35V (18V/20A)

 Reverse protection by diode clamp for reverse currents up to 3A

METER SPECIFICATIONS

Meter types: Dual 4 digit meters with 12·5mm (0.5”)LEDs. Reading rate 4Hz

Meter resolutions: 10mV,10mA.

Meter accuracies:

 Voltage 0.2% of reading ± 1 digit,

 Current 0.5% of reading ± 1 digit

GENERAL:

Input voltage range: 110V – 240V AC ± 10%, 50/60Hz. Installation Category II.

Power requirement: 600VA max.

Electrical safety: Complies with EN61010-1.

EMC: Complies with EN61326-1.

Temperature:

 Operating: +5°C to +40°C, 20% to 80%RH.

 Storage: -40°C to +70°C.

Cooling: Fan-less convection cooling.

Size: 200 x 140 x 385mm (WxHxD); Half rack width x 3U height.

Weight: 4.5kg (TSX versions); 5.0kg (TSX-P versions)

Rack mount Options: 3U Rack Mount for half rack width instruments, (RM300A)

FRONT PANEL CONTROLS - TSX-P

Voltage setting: Direct keyboard entry or quasi-analog rotary control.

Current setting: Direct keyboard entry or quasi-analog rotary control.

Overvoltage setting: Direct keyboard entry.

Output On/Off: Push buton control with indicator lamp operating electronic power control.

Delta Mode: Increase or decrease voltage or current in userselectable steps.

Store/Recall: Store and recall voltage, current and OVP levels from non-volatle memory (25 memories).

Address Setting: Set GPIB address

Damping ON/OFF: Sets current meter damping ON or OFF

DIGITAL INTERFACES - TSX-P

Operational Functions: Set voltage, set current, set OVP; set output

on/off; read output voltage; read output current; read output power.

RS232: 9600 baud, 9 pin D-connector (female).

GPIB (Optional): Conforming with IEEE488.1 & IEEE488.2.

USB Interface: Standard USB 2.0 hardware connection.

Implemented as a Virtual COM Port.

LAN Interface: LAN Ethernet 100/10base-T hardware connection. 1.4 LXI Core 2011

Setting resolution:

 Voltage - 10mV.

 Current - 10mA.

Setting accuracy:

 Voltage - ±(0.1% + 10mV)

 Current - ±(0.2% + 20mA)

Readback resolution:

 Voltage - 10mV.

 Current - 10mA.

Readback accuracy:

 Voltage - ±(0.2% + 1 digit)

 Current - ±(0.5% +1 digit)

Operating sofware: Sofware for operating the PSUs under GPIB or RS232 control is available including a Labwindows* driver.

RESPONSE TIMES:

Remote Command

Processing Time: Typically <50ms between receiving the command terminator for a step voltage change at the instrument and the output voltage beginning to change.

Power Supply: An internal time constant, T, (typically 22ms) governs the setling time of a step voltage increase.


Details
