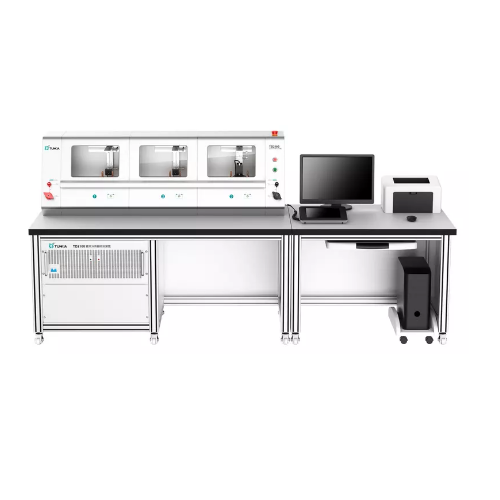

Tunkia TD2100 直流分流器检定装置 (Class 0.05, 6 Positions, Automatic Crimping Device)

Accuracy: class 0.02/0.05

DC standard current: 0.5 A ~ 600 A

Precision DC voltage measurement: 100 μV~ 11 V

Resistance measurement range: 200 nΩ~6 Ω

3/6/12 meter positions

DC shunt calibration table can be selected

Constant current source mode is adopted for measurement.

Shunts manual/automatic crimping device is optional.

Measure the resistance value and basic error of the shunt, and draw R (I) and R (t) curves

Optional temperature measurement function, recording the highest temperature point and thermal balance time of the shunt.

Professional test software (option)

Please refer to the Datasheet for detailed specifications
