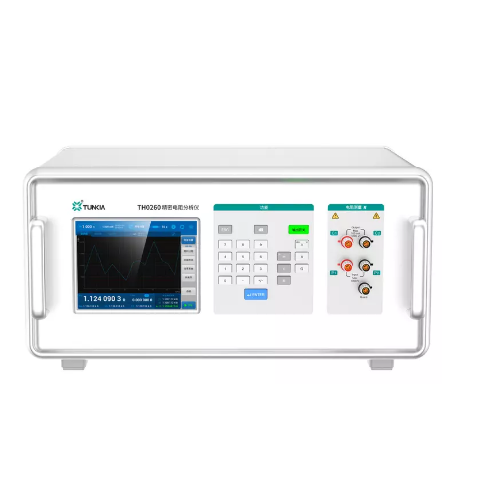

Tunkia TH0260 精密电阻分析仪 (100 μΩ ~ 1 GΩ)

- TH0260-L (low value):

Maximum current output: 100 A, maximum voltage test: 20 V.

Measuring range: 100 μΩ ~ 10 kΩ (customizable).

- TH0260-L (high value):

Maximum current test: 100 mA, maximum voltage output: 1000 V.

Measuring range: 100 Ω ~ 1 GΩ (customizable).

Uncertainty of measurement：3 ppm (typical value)

Short-term overload, long-term life, power factor, thermoelectric force.

Fast /Precise measurement Mode.

LCD touch screen.

Statistical analysis.

Front Panel or RS232 interface.

Dedicated software(optional).

Please refer to the Datasheet for detailed specifications
