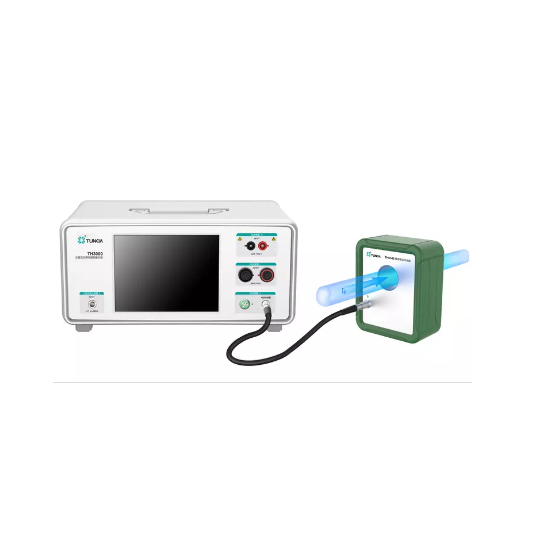

Tunkia TH3000 交直流电能测量标准 (100 A)

DC power/energy accuracy: class 0.005.

DC voltage accuracy: class 0.002; DC current accuracy: class 0.003.

DC voltage measurement: 10 mV ~ 1150 V.

Direct DC current measurement: 10 μ A ~ 120 A.

Support the transducer to expand the current range to 500 A or more.

DC small-signal voltage measurement: 0.1 m V ~ 12 V

Support DC ripple, AC 2nd ~ 63rd harmonic measurement.

Comprehensive statistics analysis of the measured electricity.

Standard energy pulse input/output function.

USB, RS232 and LAN interfaces.

LCD touch screen.

Please refer to the Datasheet for detailed specifications
