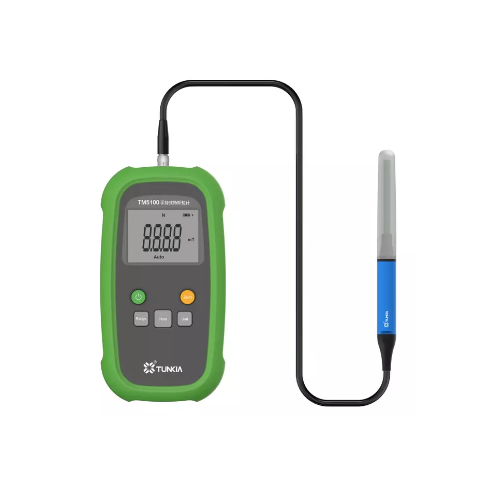

Tunkia TM5100 手持式特斯拉仪表 (30 mT ~ 3000 mT, Class 5)

Summary

The TM5100 is a portable magnetic field measuring instrument, equipped with a Hall sensor with high sensitivity and low drift, which is suitable for measuring the flux density of DC constant magnetic field.

Specification

Range: 30 mT ~ 3000 mT

Resolution: 1 μT ~ 100 μT

Measuring Range: 2 mT～3000mT

Accuracy: Class 5: ±2.0% ( 2 mT...1000 mT )，±5.0% ( 1000 mT...3000 mT )

Temperature Coefficient: ± 0.1% / K

Zero Drift: ± 0.5 mT/h

Display Digit: 5

Remark: (1) Calibration only covers 2.5T

General Specifications

Power Supply: 3 AA batteries or USB charging

Temperature Performance:

Operating temperature: 0~50℃

Storage temperature: -20°C～70°C

Humidity Performance:

Operating humidity: 40%～80% R•H, non-condensing

Storage humidity: <95% R•H, non-condensing

Weight: About 350 g

Interface: Hall probe input interface, USB interface

Overall Dimensions: 90mm(W) ×40 mm(D) × 165 mm(H)
