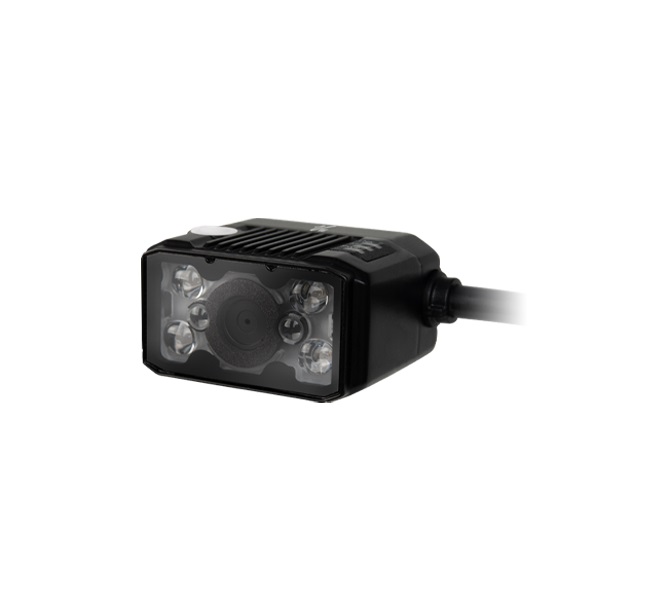

ViE Technologies XS-95 智能读码器 (1.4mp; 6mm lens; 1408 x 1024; Non Polarized Red LED)

Receiver:

Sensor: CMOS (Mono, Global Shutter)

Resolution: 1408 x 1024

Focus: Manual

Maximum Frame Rate (FPS): 60

Focal Length: 6.72 mm (0.2646”)

Pixel Size: 3.45 μm x 3.45 μm

Sensor Size: 1/2.9”

Emitter: Illumination Light Source Option: High Intensity Red LED

Reading Specifications:

Supported Symbols: 2D Codes: QR Code and Data Matrix, Barcodes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA and UPCE

Minimum Resolution: 2D Codes: 0.062 mm (0.0024”), Barcodes: 0.023 mm (0.0009”)

Reading Distance: 40 mm to 120 mm (1.5748” to 4.7244”)

Reading Field of View

(Working distance at 120 mm (4.7244”)): 86.74 mm x 63.09 mm (3.4149” x 2.4838”)

Maximum Reading Speed: 45 codes/sec

I/O Specifications

Number of Control Inputs: 1

Number of Control Outputs: 1

Ethernet Supported Protocol: SmartSDK, TCP Client, Serial, FTP, TCP Server, ModBus and UDP

Serial Communication Standard: RS-232C Compliant

Environment Resistance

Enclosure Rating: IP65 *3

Surrounding Temperature: 0 to + 45 ° C (32 to 113 ° F)

Ambient Storage Temperature: -30 to + 70 ° C (-22 to 158 ° F)

Rating

Power Consumption: 3.6 W

Power Supply Voltage: 24 VDC

Current Consumption: 0.15 A

Weight: Approx. 160 g (0.3527 lb.)

Dimension (L x W x H): 46 mm x 38 mm x 25 mm (1.8110” x 1.4961” x 0.9843”)
