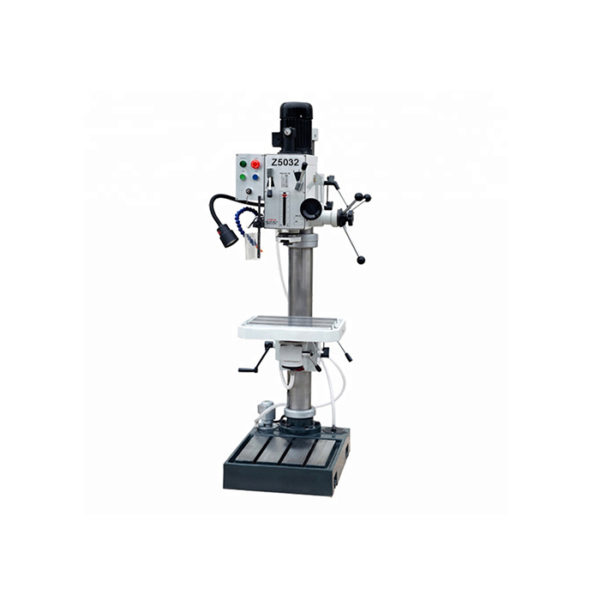

WMT CNC Z5032 立式钻床 (1.1kW)
制造商: WMT CNC Model: Z5032 保障: 12 Month - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max. drilling capacity: Φ32mm
Spindle taper: MT3/MT4/R8
Spindle travel: Φ130mm
Step of spindle speed: 6 steps
Range of spindle speed: 50Hz: 80-1250rpm
60Hz: 95-1500rpm
Step of spindle auto-feeding: 6 steps
Range of spindle auto-feeding amount: 0.06-0.30rpm
Min.distance from spindle axis to column: 290mm
Max.distance from spindle nose to worktable: 725mm
Max.distance from spindle nose to stand table: 1125mm
Max.travel of headstock: Φ250mm
Swivel angle of headstock(horizontal/vertical): 360°
Max.travel of worktable bracket: Φ600mm
Worktable size of avaliablity: 380×300mm
Swivel angle of table horizontally: 360°
Table leaned: 45°
Size of stand worktable of avaliability: 417×416mm
Motor Power: 1.1kw
Speed of motor: 1400rpm
N.W/G.W: 440/490kgs
Packing size: 1850×750×1000mm
Loading amount/20″ container: 18pcs
