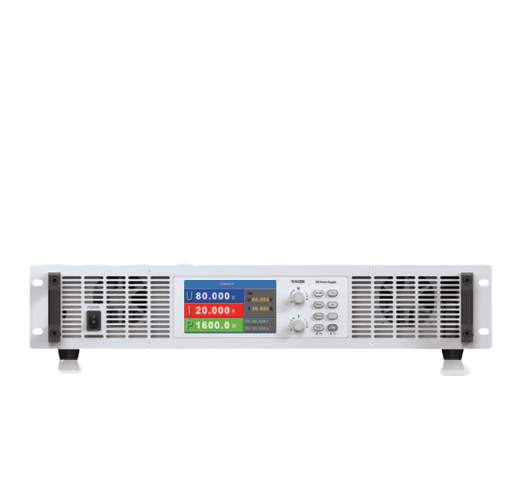

WOCEN GP-6030 直流稳压电源 (60V, 30A, 1.5kW)
制造商: WOCEN Model: GP-6030 - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Input
Phase number: Single-phase +PE
Voltage: 220V±22V
Frequency: 47-63Hz
Output
Voltage: 60V
Current: 30A
Power: 1.5kW
Size (W*H*D) mm: 2U（446*87*380）
Voltage/Current Setup error (programming accuracy): ≤0.1%Umax/≤0.2%Imax
Voltage/Current Measurement error (read back accuracy): ≤0.1%Umax/≤0.2%Imax
Voltage/Current Load effect: ≤0.1%Umax/≤0.2%Imax
Voltage/Current Source effect: ≤0.05%Umax/≤0.1%Imax
Transient response time: ≤5mS
Rise time 100%: 50mS（10%-90%）
Voltage/Current Temperature drift: 100ppm
Noise: ≤55dB（A）
OV range: 110%F.S
Communication function: Standard RS485/RS232, LAN, CAN communication, standard MODBUS_RTU, MODBUS_TCP, CAN2.0B communication protocol other communication ports support customization.
Protection function: Over temperature, output overvoltage, output undervoltage, output overcurrent, compensation reverse connection protection
Analog interface (optional): Start, stop, alarm, 0-5V or 0-10V analog control output
Efficiency: ≥85%
Operating temperature: 0~40℃
