Wrindu RDCZ-Ⅱ Disconnector Contact Pressure Tester (20 ~ 90 mm)
制造商: Wrindu Model: RDCZ-Ⅱ - 联系
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
1. Working environment: Temperature: - 10 ~ 40 ℃, humidity: ≤ 80% RH, atmospheric pressure: 86 ~ 106kpa
2. Measurement range: ≤ 1000 n error: ≤ 1% reading ± 1n
3. Measurement diameter (finger opening distance): 20 mm ~ 90 mm (conventional),
Note: less than 20mm, more than 900mm (customizable), plum blossom contact fixture (customizable)
4. Power supply: internal lithium battery ≤ 20W, power supply working time ≥ 6h
5. Charging mode: the special charger is connected to the lithium battery charging interface of the panel for charging;
6. Sensor signal line length: 10M
7. Insulation resistance: > 2m Ω
8. Dielectric strength: the power supply can withstand voltage of 1.5kV for one minute without flashover and flashover.

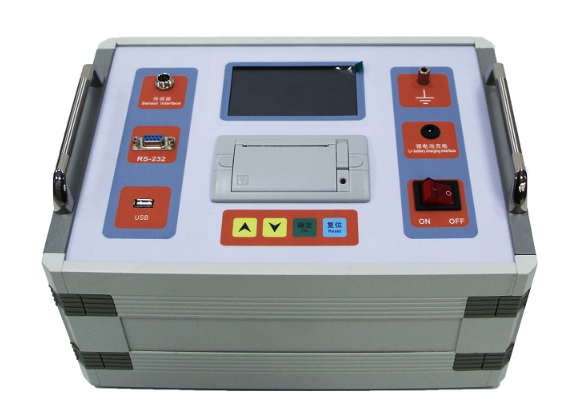

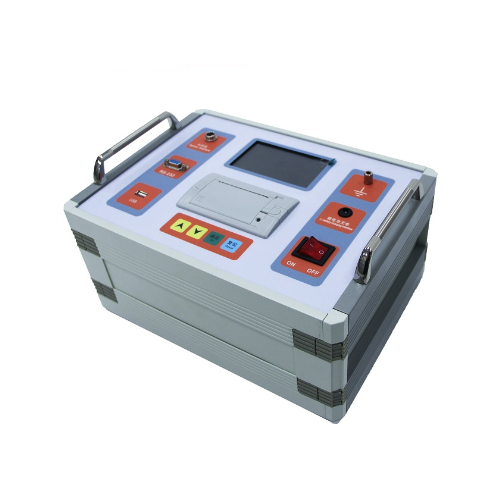

Product features:
1. The HV disconnect testing device is mall size, light weight, portable and easy to operate
2. Background light LCD
3. Built in lithium battery.
4. The Isolation switch tester instrument is equipped with micro printer, which can print test report and atlas
