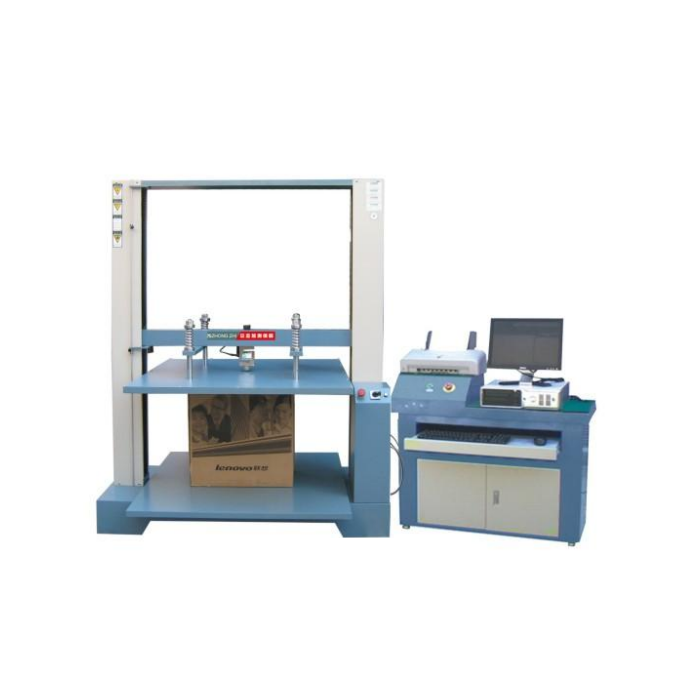

Zhongzhi CZ-6609 Servo Carton Compression Tester
Manufacturer: Zhongzhi Model: CZ-6609 Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Capacity (optional): 20kN Optional 10kN, 50kN, 100kN
Load Resolution: 1/500,000
Test Space:
Standard: 1000 x 1000 x 1000mm
Designed: 1200 x 1200 x 1200mm; 1500 x 1500 x 1500mm
Test Speed: 0.001-500mm/min
Speed Accuracy: 0.5%
Displacement Resolution: 0.00004mm
Software: closed-loop control software
Test Item: Compressor Test, continous compression test, stacking test
Motor: AAC servo motor
Transmission Rod: High accuracy of ball screw
Main Unit Dimension (WxDxH): 1400x1000x1715mm (20kN below type)
Power: AC220/50Hz or specified by user
