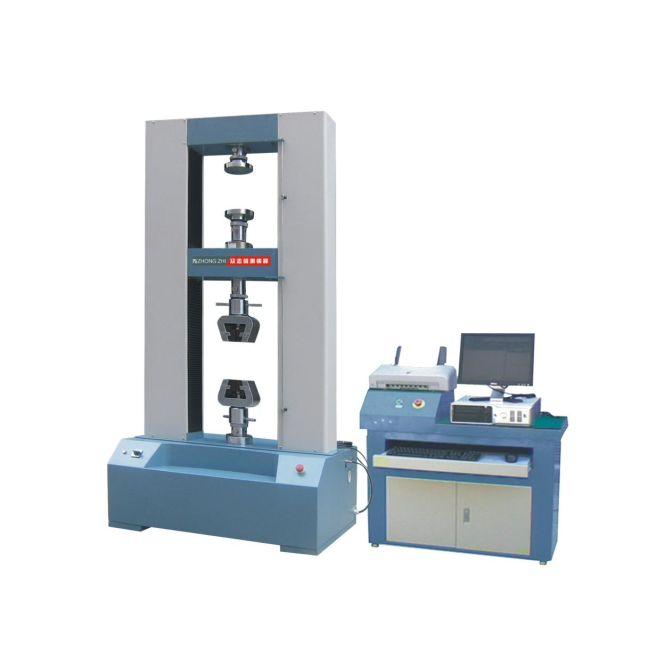

Zhongzhi CZ-8000A Servo Controlled Tensile Testing Machine
Manufacturer: Zhongzhi Model: CZ-8000A - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Capacity (Optional): 50kN, 100kN, 200/300kN
Unit (switchable): N,kN,kgf,Lbf,MPa,Lbf/In²,kgf/mm²
Load Resolution: 1/500,000
Accuracy Grade of Machine: 0.5 Level
Load Magnifying Rate: Section-less
Max Stroke (Exclude the Grips): 1200 mm, 1100 mm
Effective Width: 500mm others (Customized), 550 mm others (Customized)
Test speed: 0.001 ~ 500mm/min
Speed accuracy ± 0.25%
Displacement Resolution: 0.00004mm
Software: Closed-loop control software
Motor: Servo motor
Transmission Rod: High accuracy of ball screw
Main Unit Dimension (WxDxH): 1022x700x2000mm (50kN), 1080x700x2340mm (100kN), 1120x700x2520mm (200/300kN)
Power: AC220/50HZ 15A or specified by user
