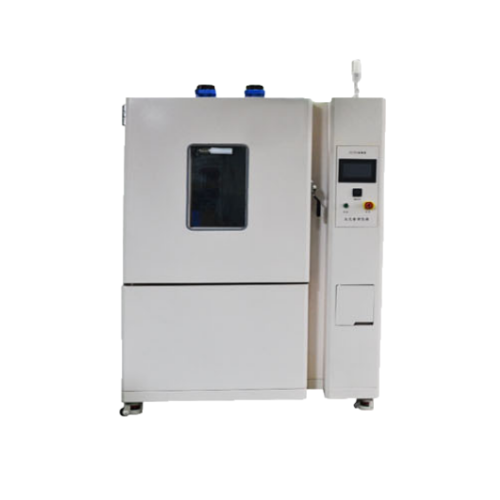

Zhongzhi CZ-H-80B Thermal Shock Chamber (150°C ~ -55°C)

Internal DimensionsWxHxD(cm): 50x40x40

External DimensionsWxHxD(cm): 120x206x155

Temperature Range: 150℃ ~ -55℃; (High temperature zone: 60°C ~ 150°C; Low temperature zone: -10°C ~ -65°C)

Heating Time (Heat Storage Area): RT~200°C about 35min

Cooling Time (Cool Storage Area): RT~-70°C about 55min

Temperature Response Time/ Time Change: ≤5min/≤10sec

Precision Temperature Control/ Distribution Accuracy: ±0.5°C / ±2.5%°C

Internal and Outer Materials: The external box is the SUS304# stainless steel surface strips or cold-rolled steel paint (optional), the inner box is SUS 304# stainless steel.

Insulation Material: Heat-resistance high-density aluminum silicate fiber cotton or PU foam insulator materials.

System: P.I.D+S.S.R+ Micro-computer balanced temperature control system

Cooling System: Semi-hermetic double-stage compressor (water-cooled type)/Hermetic double-stage compressor (air-cooled type)

Security Protection Devices: Non-fuse breaker, high and low Pressure protective switch of the compressor, refrigerator high-pressure protective switch, failure warning system, electronic alarm

Accessories: Wiewing window (special order), shelves (freely adjustable, 2 pcs), power-on test cable port, castor, horizontal support

Power: AC380V 50HZ/60HZ 3

Weight (Approximate): 700 Kg

Controller: South Korea "SAMWOM TECH"

Compressor: France's "Tecumseh" Brand/Germany's Bitzer
