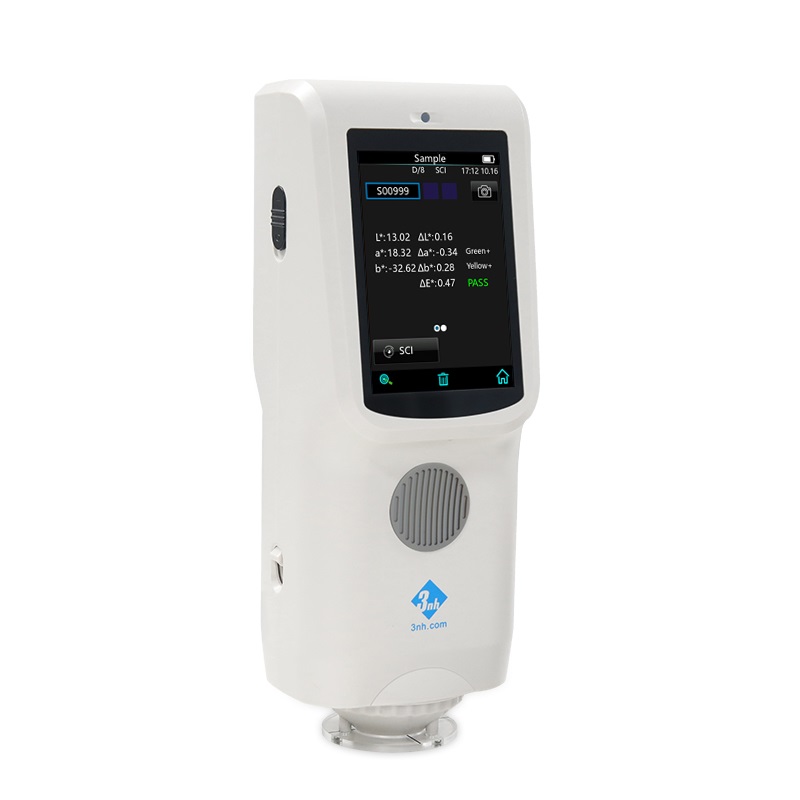

3nh TS7036 Portable Spectrocolorimeter (Dual Apertures; Dual-32 array sensor)

Integrating Sphere Size: Φ40mm

Light Source: Combined full spectrum LED light source, UV light source

Spectrophotometric Mode: Flat Grating

Senso: Silicon photodiode array (double row 32 groups)

Wavelength Range: 400～700nm

Wavelength Interval: 10nm

Semiband Width: 10nm

Measured Reflectance Range: L:0~120; reflectivity:0~200%

Measuring Aperture: Dual Apertures：MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm

Color Space: CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2)

Observer Angle: 2°/10°

Illuminant: D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)

Displayed Accuracy: 0.01

Measuring Time: About 1.5s (Measure SCI & SCE about 3.2s)

Dimension: L*W*H=81x71x214mm

Weight: About 460g

Battery: Li-ion battery, 6000 measurements within 8 hours

Illuminant Life Span: 5 years, more than 3 million times measurements

Display: 3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port: USB, Bluetooth 5.0

Data Storage: Standard 1000 Pcs, Sample 30000 Pcs (One data is able to include SCI/SCE)

Language: Simplified Chinese, English, Traditional Chinese

Operating Environment: 0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment: -20~50℃, 0~85%RH (no condensing)

Standard Accessory: Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture

Optional Accessory: USB Micro Printer, Powder Test Box, Bluetooth Micro Printer
