Power Supply: 110–240 V, single phase, 50/60 Hz
Max. Power: 500 W
Compressed Air: 0.5–0.8 MPa
Chamber Body: 12 mm thick aluminum case with observation window
Vacuum Level: stable vacuum condition; vacuum degree and circulation times can be set independently
Vacuum mode (once or twice) selectable
Easy program setting for specific vacuum conditions
Vacuum degree up to -90 kPa ~ 0, good sealing performance
Air leakage within 1 minute not more than 0.01 MPa
Vacuum Hold Time: 0–9999 s, adjustable
Sealing Advantage: Sealing head made of copper, good heat transfer; Adjustable plate for different battery specifications, easy adjustment
Sealing Head Temperature: RT–250°C, adjustable
Temperature Accuracy: ±2°C
Heat Sealing Pressure: 0–7 kg/cm², adjustable
Hot Sealing Time: 0–99 s, adjustable
Sealing Blade: Hard type (without rubber), only for aluminum case sealing, not suitable for tab-in-between cases
Sealing Width: 5 mm, customizable
Sealing Head Length: 200 mm
Suitable Battery Size (Inner size): 180 × 120 × 10 mm
Dimensions:
Work box: 570 × 420 × 750 mm
Control unit: 460 × 480 × 250 mm
Inner chamber: 350 × 285 × 165 mm
Net weight: about 76 kg

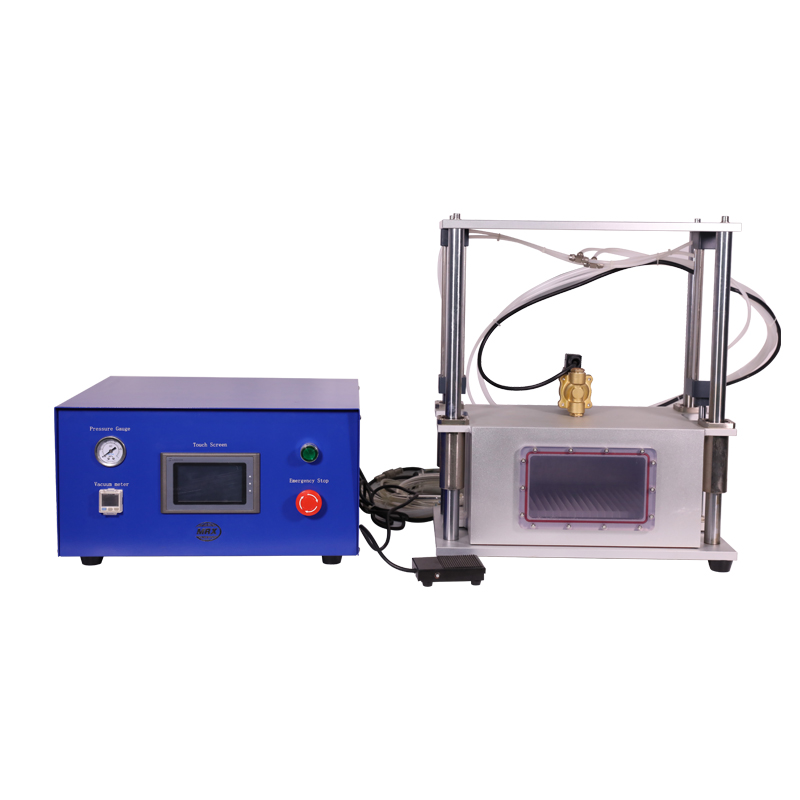

ACEY-VSS200 Vacuum diffusion and pre-sealing all-in-one machine is designed for professional lithium-ion battery research. It is mainly used to remove air from the electrolyte under vacuum conditions after the electrolyte is injected into the polymerized lithium ion battery/cylindrical battery, and finally forms a seal. It is easy to operate and suitable for all types of batteries (especially soft bag battery and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.
