- Temperature Range:
300 ~ 1000°C (572 ~ 1832°F) (MB 10)
350 ~ 1300°C (662 ~ 2372°F) (MB 13)
450 ~ 1700°C (842 ~ 3092°F) (MB 17)
500 ~ 2200°C (932 ~ 3992°F) (MB 22)
550 ~ 2500°C (1022 ~ 5972°F) (MB 25)
- Optics:
Optical head I: Adjusted to: 700mm
Optical head II (fixed adjusted): Adjusted to: 4500mm
Optical head II (focusable): Range: 340 ~ 4500
- Spectral Ranges:
MB 10: Channel 1: 1.52 μm, Channel 2: 1.64 μm
All other MB: Channel 1: 1.28 μm, Channel 2: 1.65 μm
- Resolution:
Display: 1°C; Interface: 0.1°C
Analog output: < 0.025% of adjusted temperature range
- Accuracy (K = 1, t90 = 1 s, Tamb = 23°C):
0.5% of reading in °C + 1°C (< 1500°C)
0.7% of reading in °C + 1°C (> 1500°C)
- Repeatability (K = 1, t90 = 1 s, Tamb = 23°C): 0.3% of reading in °C + 1°C
- Emissivity ε: 0.1 ~ 1 adjustable in steps of 0.001
- Emissivity Slope κ: ε1 /ε2 : 0.800 to 1.200 adjustable in steps of 0.001
Electrical:
- Power Supply: 24 VDC (15 ~ 40 VDC) or 24 VAC (12 ~ 30 VAC), 48 ~ 62 Hz
- Power Consumption: Max 600 mA
Environmental
- Protection system: IP65 (according to DIN 40 050)
- Operating Temperature (At the converter housing): 0 ~ 50°C (32 ~ 122°F)
- Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
- Weight:
Converter: 2.2 kg (≈2.20 lbs)
Optical head II: 140 g (≈4.94 oz)
Fiber (2.5 m): 250 g (≈8.82 oz)
- CE Label: According to EU directives about electromagnetical immunity
Interface and Communication:
- Analog Output:
0 ~ 20 or 4 ~ 20 mA switchable, load 0 ~ 500 Ohm
Test current 10 mA for inspection of wiring and connected instruments
- Interface: Switchable: RS232 or RS485 addressable, half duplex; baud rate 2.4 up to 115.2 kB
- Display: Built-in 4-digit 7-segment-LED, height 13 mm; LED for °C/°F, clear mode "auto", "ext", ratio (2-color), mono (1-color), metal mode

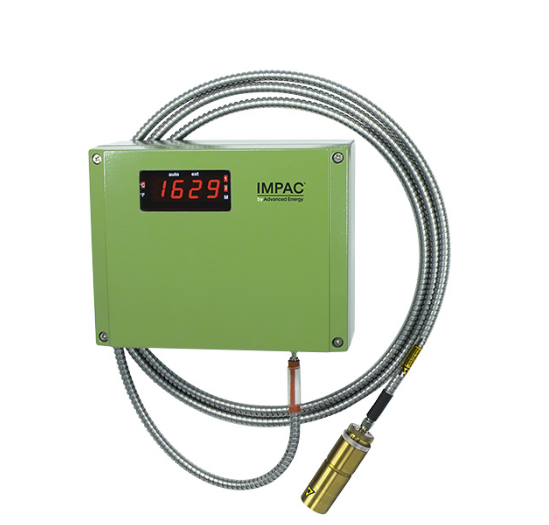

- Scope of Delivery: Converter, optical fiber and optical head as per configuration, works certificate, PC software InfraWin, and user manual.
