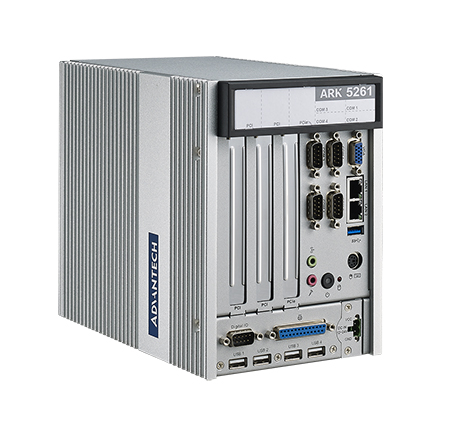

Advantech ARK-5261P-J0A1E Embedded Box PC with 3xPCI (Intel® Celeron® J1900, 2.0 GHz)

CPU: Intel® Celeron® J1900 processor, 2.0 GHz

Memory: Dual channel DDR3L-1333 (low power 1.35V), 4 GB memory built in, supports up to 8 GB

Graphics: Intel® HD Graphics, Up to 224 MB SDRAM of shared system memory, VGA: 2560 x 1600 @ 60Hz

Ethernet: LAN 1/2: 10/100/1000 Mbps Intel® I211GigaLAN controller, supports Wake-on-LAN

Audio: Line-Out, Mic-in

Serial Ports: 4 x RS-232/422/485, 1 x COM1, and 1 x COM2 with 5V/12V power, supports auto-flow control

USB: 6 (1 x USB 3.0, 4 x USB 2.0, 1 x internal USB 2.0 type A)

PS/2 Port: 1 supports PS/2 mouse and keyboard

Parallel Port: D-sub 25-pin connector

Digital I/O: 8-bit digital IO (DB9 connector)

Watchdog Timer: 255-level timer intervals, setup via software

Storage:: 2 x 2.5” SATA HDD/SSD bays (9.5 mm height), 1 x mSATA or SATAII

PCI/PCIe: 3 x PCI, 1 x full-size mini PCIe. Supports 15W max. power and 99 x 186 mm max. dimensions (W x L) for PC expansion board

OS Support: Microsoft Windows 7/8.1/Embedded and Linux Fedora 19

Power Type: ATX / AT

Input Voltage: 9V @ 6.6A ~ 30V @ 2A

Power Adapter: AC-to-DC, 65 W DC 19 V / 3.4 A

Power Consumption: 9.9 W ~ 12.9 W

Construction: Aluminum housing

Mount Options: Desk/wall mounting

Dimensions (W x H x D): 137 x 189 x 221 mm

Weight: 4.2 kg (9.24 lbs)

Operating Temperature: With 2 x industrial SSDs without PC expansion boards: -20 ~ 60 °C with 0.7m/sec air flow. With 1 x 2.5\\

Storage Temperature: - 40 ~ 85 °C (-40 ~185 °F)

Relative Humidity: 95% @ 40 °C (non-condensing)

Vibration: With 2.5\\

EMC: CE/FCC, CCC, BSMI

Safety Certifications: CCC, BSMI
