Max. force: 200N (20kgf)
Force accuracy: Depends on the load cell used.
Force measuring amplifier: MODEL-1018
Controller: Built in
Test speed: 2～60mm/min
Speed changing: 5 steps or stepless
Test Stroke: 25mm
Distance between test center and column: 77mm
Table size: W330×D150mm
Drive motor: DC brushless motor
Detector: Linear gage
Display accuracy: 0.05mm
Dimensions: W340×H580×D430mm
Stand mass: Approx. 32 kg
Amplifier mass: Approx. 5.2 kg
Power supply: Single phase, 100VAC – 240VAC 0.5A

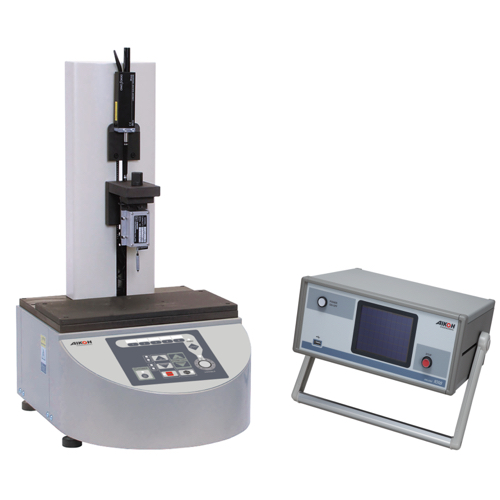

Standard set: Tester
force measuring amplifier MODEL-1018
load cell 1 piece
linear gage
Options: Additional load cell, jig/fixture, software, detector Model 0219
