Max. force: 500N (50kgf)
Force accuracy: Depends on the load cell used.
Force measuring amplifier: MODEL-1018
Controller: Built in
Test speed: 10～80mm/min
Speed changing: 5 steps or stepless
Stroke: 150mm
Distance between test center and column: 77.5～117.5mm
Table size: W100×D100mm
Drive motor: DC brushless motor
Detector: Rotary encoder, resolution 0.01 mm
Display accuracy: 0.1mm
Dimensions: W518×H314×D345mm
Stand mass: Approx. 23 kg
Amplifier mass: Approx. 5.2kg
Power supply: Single phase, 100 VAC – 240 VAC, 0.5A

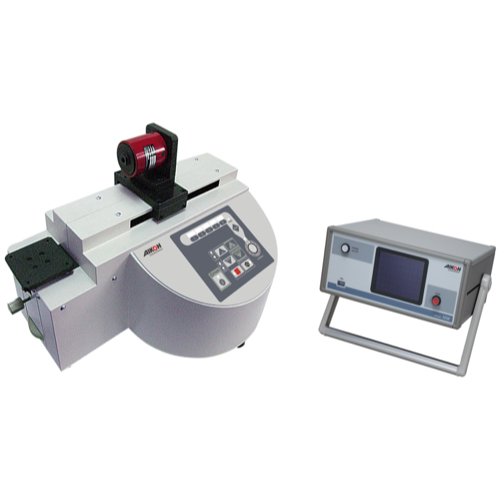

Standard set: Tester, force measuring amplifier MODEL-1018, load cell 1 piece
Options: Additional load cell, jig/fixture, software
