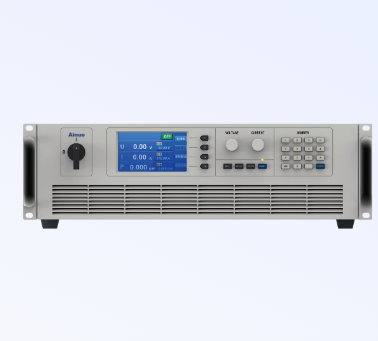

Ainuo AN53750-20(F) Wide Range Programmable DC Power Supply (750V/20A/5kW)

Input: 3-phase 3-wire +PE ,340V~420VAC,47-63HZ

Output

Voltage: 0~750V

Current: 0~20A

Power: 0~5kW

Display mode: 4.3'' color LCD

Resolution/Accuracy

Voltage: ≤0.1%Umax, Resolution:0.01V

Current: ≤0.2%Imax, Resolution:0.01A (>1000A, 0.1A)

Power: ≤1%Pmax, Resolution: 0.001kW(>100kW, 0.01kW)

Ripple and Noise 20Hz~20MHz

Vrms: 200mV

Vpp: 800mV

Load effect: Voltage:≤0.05%Umax, Current: ≤0.15%Imax

Source effect: Voltage:≤0.02%Umax, Current:≤0.05%Imax

Transient response time: ≤2ms

Rise time 100%: 50ms(10%-90%)

Max output voltage drop compensation: 25V

Communication: Standard RS232,Optional RS485,CAN,LAN,GPIB,Analog interface

Protection: reverse, current limiting, S terminal compensation ,Input phase loss protection, output overvoltage, overheat, short circuit protection

Parallel: Support multiple parallel outputs to expand the power/current range

Environment: Temperature: 0~40ºC; Humidity: 20~90%RH

Dimension W×H×D(mm): 440×133×595

Weight: 17kg
