Force: 25 kN / 2500 kgf / 5500 lbf
Speed Range (25 kN): 0.01–1000 mm/min (0.0004–39.4 in/min)
Speed Accuracy: Better than ±2% of indicated speed or ±0.02 mm/min (±20 µm/min), whichever is greater
Speed Resolution: 0.001 mm/min (0.00004 in/min)
Maximum Displacement: 950 mm (37") for 10 & 25 kN models; 1230 mm (48") for 50 kN model
Displacement Accuracy: ±0.1% of indicated position or ±0.01 mm, whichever is greater
Displacement Resolution: 0.001 mm (±0.00004")

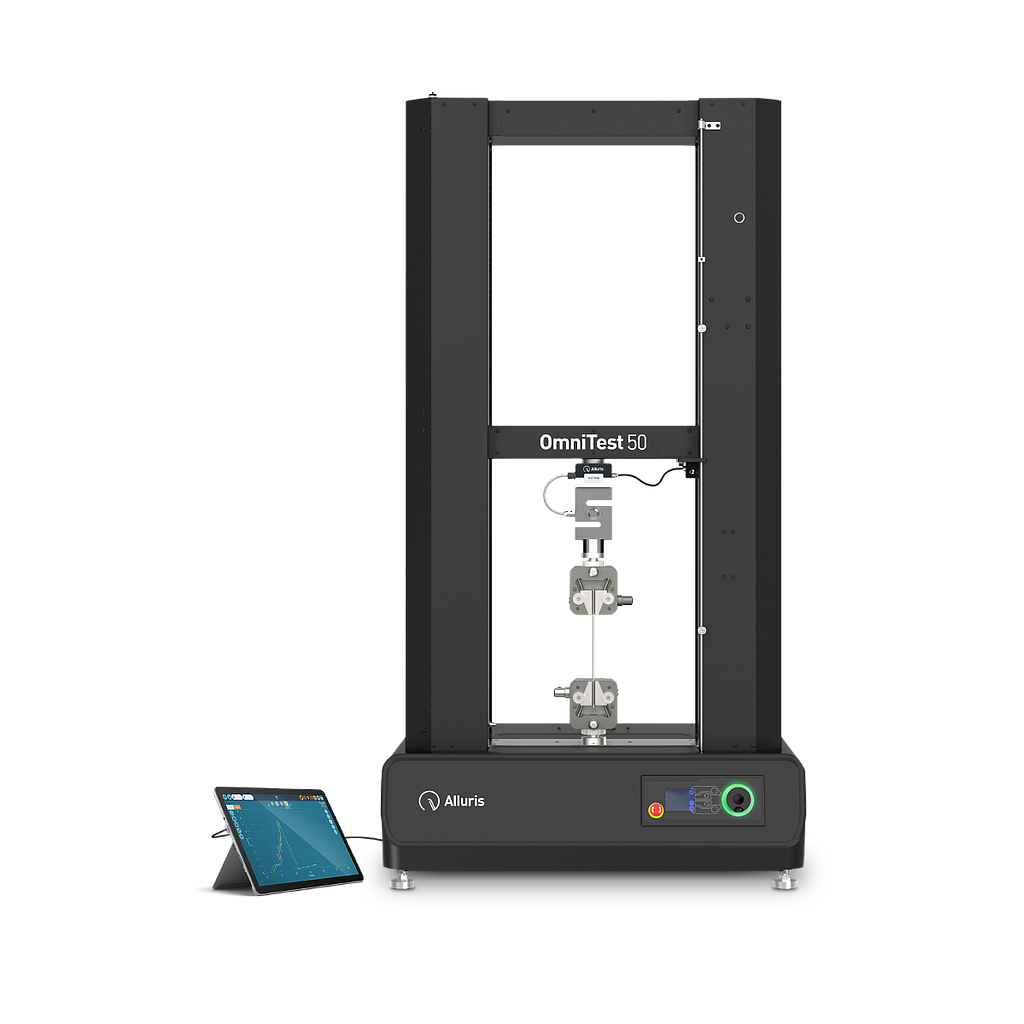

The OmniTest testing systems use our range of high-resolution precision Enhanced Load Sensors (ELS) to record tensile and compressive loads.
Its construction makes it perfectly suited for testing all kinds of materials in a quality control or R&D environment.
The OmniTest materials testing systems use a range of high-resolution precision Enhanced Load Sensors (ELS) to record tensile and compressive loads.
OmniTest twin column range can accommodate an environmental chamber to test materials in controlled ambient conditions.
This accessory enables specimens to be tested in a temperature-controlled space from -80°C to +280°C. The chamber is ideal for running tests conforming to plastics and rubber standards such as ISO 527, ASTM D638 and ISO 37.
Additional equipment to provide low temperature environment is also available.
