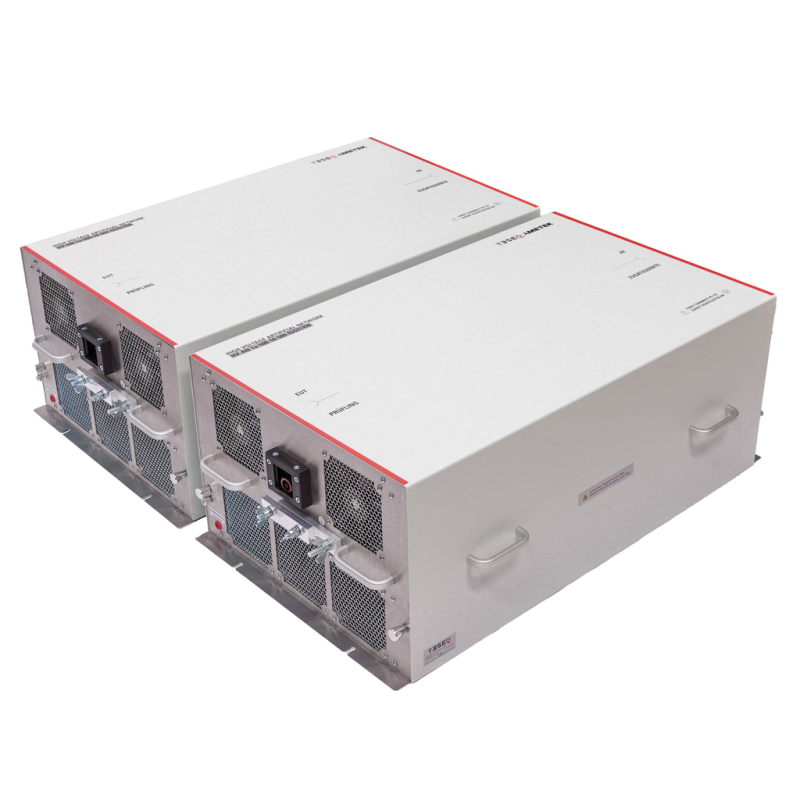

AMETEK CTS HV-AN 1u-R010-500/700 High Voltage Artificial Networks (500 A; 700 A; B)

Resistance: 10 mΩ

Maximum DC current: Continuous: 500 A; For 70 s: 700 A

Form Factor: B

Number of modules in set: 2

Max. voltage: 1000 VDC, 500 VACRMS

Isolation voltage: 1500 VDC (AE to GND)

Impedance and tolerance: according to ISO 21498-2

EUT/AE connector: inner thread with hex bolt (M16, key width 24 mm)

Measurement connector: 4mm safety lab connector (female), protected by fuse

Ground bar connector: bolt for screw nut M8

Temperature monitor: yes, one temperature sensor per module (type K)

Dimensions per module(s): 800 x 510 x 300 mm

Weight module / set approx. 51 kg / 102 kg

Classification: Indoor use only

Operating temperature: 0 °C to +30 °C

Storage temperature: –10 °C to +60 °C

Relative humidity: up to 90 % r.h. non-condensing

Mains supply: by external power supply, 24 VDC / 2.4 A (included in set)
